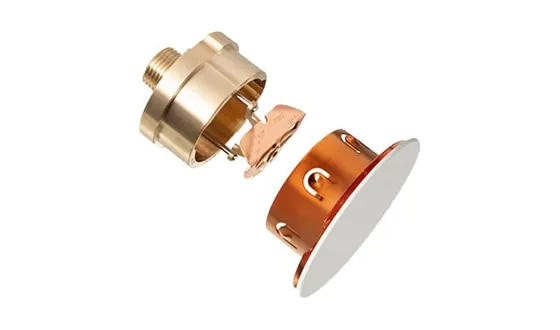

Supplier for TycoA link type K5.6 horizontal sidewall sprinkler hidden in the wall behind a flat cover plate, for light and ordinary hazard rooms such as hotel rooms, dormitories, offices, conference rooms and hospitals.
Standards and approvals: UL and C-UL Listed, FM Approved
| Specification | K=5.6 gpm/psi½ (80,6 lpm/bar½) | TY3521 |
|---|---|---|
| Horizontal Adjustment | ¼ in. (6,4 mm) | |
| Body | Brass | |
| Frame | Brass | |
| Deflector | Bronze | |
| Bridge | Bronze | |
| Button | Bronze | |
| SIN | TY3521 | |
| K-factor | 5.6 K-factor | |
| Response | Quick Response | |
| Discharge Coefficient | K=5.6 gpm/psi½ (80,6 lpm/bar½) | |
| Maximum Working Pressure | 250 psi (17,2 bar)* 175 psi (12,1 bar) *The maximum working pressure of 250 PSI (17,2 bar) only applies to UL and C-UL listings. | |
| Temperature Rating | 160°F (71°C) Sprinkler with 139°F (59°C) Cover Plate 212°F (100°C) Sprinkler with 165°F (74°C) Cover Plate | |
| Finishes | See the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
Sizes: 3 mm bulb, 5 mm bulb
A K5.6 concealed pendent sprinkler with a flat cover plate for architecturally sensitive areas such as hotel lobbies, offices, churches and restaurants, offered with a 3 mm bulb (TY3531, quick response) or a 5 mm bulb (TY3551, standard response).
Sizes: 3 mm bulb, 5 mm bulb
A non-magnetic K5.6 concealed pendent sprinkler for the MR system room of an MRI suite, mounted at the ceiling close to the scanner but not inside the scanner bore.
A solder type concealed pendent sprinkler with an extra large K11.2 orifice, for architecturally sensitive areas where water pressure is limited and a higher water density is needed.
Heat activated sprinkler heads for automatic sprinkler systems, ISI marked to IS 15105 and offered in pendant, upright and sidewall types. Each head opens at its fusible bulb rating, 68°C as standard, with other temperatures available.
A flexible hose connector that links the rigid sprinkler branch pipe above a false ceiling to the sprinkler head below it. It takes up building movement, ceiling deflection and installation misalignment, so the head can be positioned without cutting or re-routing pipe.
A brass glass bulb sprinkler hidden behind a white or chrome cover plate, for concealed pipe systems where a smooth ceiling is wanted. It comes in standard and quick response and is UL Listed.
A conventional glass bulb spray sprinkler for pendent, recessed pendent or upright mounting, in standard or quick response. NFPA allows old style sprinklers where special construction features need a unique water distribution.
Kartar's forged brass sprinkler head with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, in pendent, upright and sidewall types. The K908.I series is ISI marked; the K908 series is listed without the mark.
A rosette plate that covers the ceiling opening around a sprinkler head. Kartar lists a fixed plate (K908 FR) and an adjustable plate (K908 AR).
