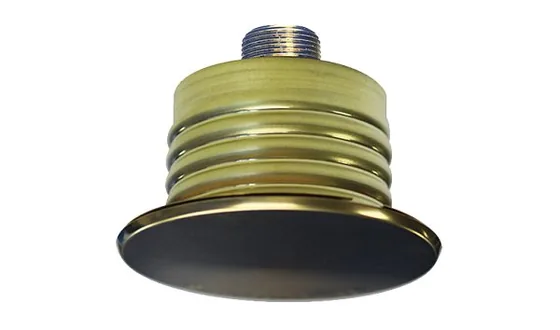

Supplier for TycoA non-magnetic K5.6 concealed pendent sprinkler for the MR system room of an MRI suite, mounted at the ceiling close to the scanner but not inside the scanner bore.
Standards and approvals: UL Listed
Sizes: 3 mm bulb, 5 mm bulb
| Specification | 3 mm bulb | 5 mm bulb | K= 5.6 GPM/psi½ (80,6 LPM/bar½) |
|---|---|---|---|
| SIN | TY3530 | TY3550 | |
| SIN entry as printed | 3 mm bulb | 5 mm bulb | |
| K-factor | 5.6 K-factor | 5.6 K-factor | |
| Discharge Coefficient | K= 5.6 GPM/psi½ (80,6 LPM/bar½) | K= 5.6 GPM/psi½ (80,6 LPM/bar½) | |
| Maximum Working Pressure | Maximum 175 psi (12,1 bar) | Maximum 175 psi (12,1 bar) | |
| Temperature Rating | 155°F (68°C) Sprinkler with 139°F (59°C) Plate 200°F (93°C) Sprinkler with 165°F (74°C) Plate | 155°F (68°C) Sprinkler with 139°F (59°C) Plate 200°F (93°C) Sprinkler with 165°F (74°C) Plate | |
| Finishes | See the Ordering Procedure section. | See the Ordering Procedure section. | |
| Sprinkler Approvals | TY3530 (3 mm bulb) • UL Listed, C-UL listed as quick response • FM approved as standard response | TY3530 (3 mm bulb) • UL Listed, C-UL listed as quick response • FM approved as standard response | |
| Adjustment | 1/2 in. (12,7 mm) | ||
| Frame | Bronze | ||
| Support Cup | Brass | ||
| Guide Pins | Stainless Steel | ||
| Deflector | Bronze | ||
| Compression Screw | Brass | ||
| Bulb | Glass | ||
| Cap | Bronze or Copper |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
Sizes: 3 mm bulb, 5 mm bulb
