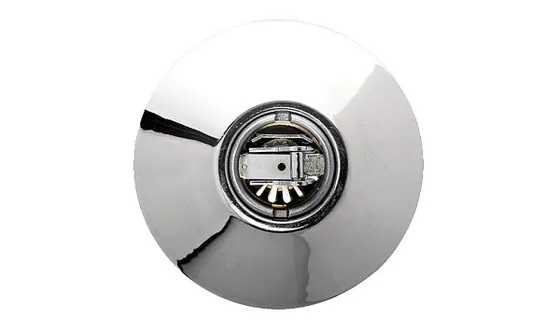

Supplier for TycoA tamper resistant, standard response, standard coverage horizontal sidewall sprinkler for correctional, detention and mental health care facilities, with a flush design that hides most working parts.
Standards and approvals: UL and C-UL Listed
| Specification | K = 5.6 gpm/psi½ (80,6 Lpm/bar½) | TY3390 |
|---|---|---|
| Body | Brass | |
| Deflector | Bronze | |
| Deflector Hood | Bronze | |
| Deflector Post | Bronze | |
| Deflector Post Pin | Bronze | |
| Deflector Core | Bronze | |
| Compression Screw | Bronze | |
| Lever | Bronze | |
| Release Spring | Bronze | |
| SIN | TY3390 | |
| K-factor | 5.6 K-factor | |
| Inlet Thread Connection | 1/2 in. NPT | |
| Response | Standard Response | |
| Discharge Coefficient | K = 5.6 gpm/psi½ (80,6 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Ratings | 165°F (74°C) | |
| Finishes | Sprinkler: Chrome Plated Escutcheon: Chrome Plated |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
