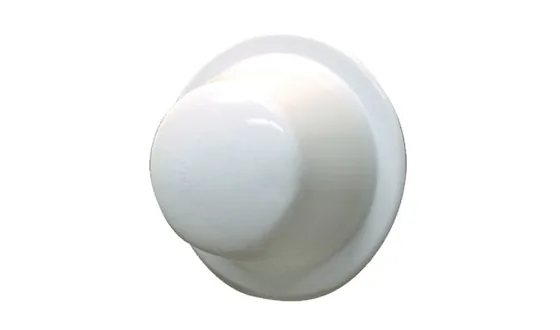

Supplier for TycoTyco Model CHEC Concealed Horizontal Extended Coverage Sidewall Sprinkler, K8.0, Quick Response (TFP265)
A 3 mm bulb concealed sidewall sprinkler for light hazard rooms such as hotel rooms, dormitories, offices, conference rooms and hospitals, with a QREC rating up to 16 ft by 16 ft.
- Low profile cover plate without vent holes, which also discourages hanging garment bags or clothes hangers on the sprinkler
- Fits along a wall or beam side below a smooth, level ceiling
- Push-on, thread-off two-piece design with 1/2 in. of horizontal adjustment; the system can be pressure tested before the wall is finished
- 68°C sprinkler with a 59°C cover plate
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing
Standards and approvals: UL and C-UL Listed
Specifications
Specifications
| Specification | K=8.0 GPM/psi½ (115,2 LPM/bar½) | TY4332 |
|---|---|---|
| Horizontal Adjustment | 1/2 in. (12,7 mm) | |
| Response Rating | Coverage | |
| Frame | Bronze | |
| Button | Bronze | |
| Button Spring | Stainless Steel | |
| SIN | TY4332 | |
| K-factor | 8.0 K-factor | |
| Response | Quick Response | |
| Discharge Coefficient | K=8.0 GPM/psi½ (115,2 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Rating | 155°F (68°C) Sprinkler with 139°F (59°C) Cover Plate | |
| Finishes | Refer to the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
