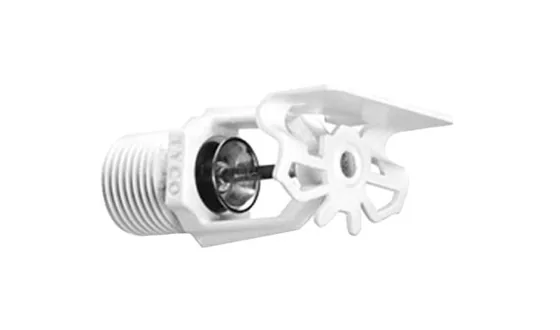

Supplier for TycoTyco Model EC-HS Quick Response Extended Coverage Horizontal Sidewall Sprinkler, K80, VdS CEA 4001 (TFP288)
A 3 mm glass bulb extended coverage sidewall sprinkler with a metric K-factor of 80, for systems installed to VdS CEA 4001 and its Annex E under smooth ceilings in light hazard or ordinary hazard group 1.
- K-factor 80 Lpm/bar½
- For churches, restaurant seating areas, hotels, educational buildings and offices
- Temperature ratings 57°C, 68°C and 79°C
- Maximum working pressure 12 bar
- Tyco lists VdS approval
Standards and approvals: VdS Approved
Specifications
Specifications
| Specification | EC-HS, 80K, 1/2 in. NPT | K = 80 Lpm/bar1/2 |
|---|---|---|
| SIN | TY3330 | |
| SIN entry as printed | EC-HS, 80K, 1/2 in. NPT | |
| Orientation | EC-HS | |
| K-factor | 80K | |
| Thread | 1/2 in. NPT | |
| Response | Quick Response | |
| Discharge Coefficient | K = 80 Lpm/bar1/2 | |
| Maximum Working Pressure | 12 bar | |
| Temperature Ratings | 57°C, 68°C, and 79°C. | |
| Finishes | Sprinkler: See Table B | |
| Recessed Escutcheon | Brass Plated Pure White, or Chrome Plated. | |
| Frame | Bronze | |
| Button | Brass/Copper | |
| Sealing Assembly | Beryllium |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
