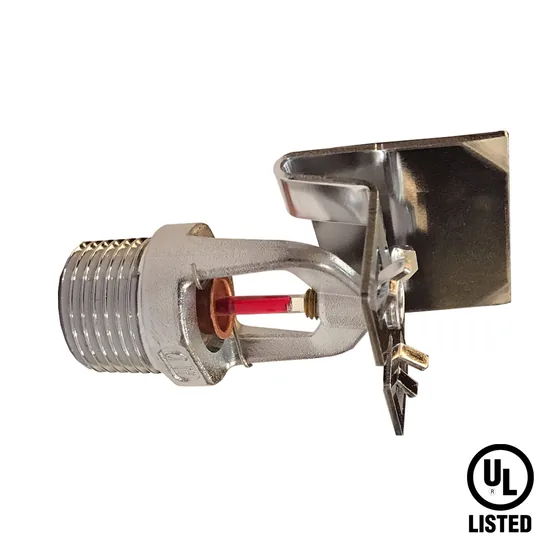

Dealer for HD FireHD Fire HSW Extended Coverage Quick Response Sprinkler, K 5.6 and K 8
A quick response horizontal sidewall sprinkler with extended coverage, meaning one head protects a larger area than a standard coverage sprinkler. It is offered in K 5.6 and K 8.0, has a chrome finish and is UL Listed.
- Quick response, extended coverage
- K-factor 5.6 or 8.0
- Horizontal sidewall mounting, can be fitted with a two piece recessed escutcheon
- Temperature ratings 57°C, 68°C, 79°C and 93°C
- Chrome finish
Standards and approvals: UL Listed
Specifications
Specifications
| Specification | Details | Details | Details |
|---|---|---|---|
| Temperature rating | 57°, 68°, 79° & 93°C | ||
| Style | Horizontal Sidewall Sprinklers | ||
| Temperature Response | Quick Response with 3mm glass bulb | ||
| Coverage | Extended Coverage | ||
| K-Factor | 5.6 US (80 metric) | ||
| Nominal Thread Size | ½” BSPT (NPT Optional) | ||
| Max. Working Pressure | 175 PSI (12 Bar) | ||
| Factory Hydrostatic Test Pressure | 500 PSI (35 Bar) | ||
| Min. Operating Pressure | 7 PSI (0.5 Bar) | ||
| Temp. Rating | 57°C (135°F) / 68°C (155°F) 79°C (175°F) / 93°C (200°F) | ||
| Finish | Chrome Plated | ||
| Ordering Information | Style, Temp. Rating, Thread type & Finish | ||
| SIN Number | HD243 | HD223 | |
| STYLE | Horizontal Sidewall Sprinklers | ||
| TEMPERATURE RESPONSE | Quick Response with 3mm glass bulb | ||
| COVERAGE | Extended Coverage | ||
| K-FACTOR | 8.0 US (115 metric) | ||
| NOMINAL THREAD SIZE | 3/4” NPT | ||
| MAXIMUM WORKING PRESSURE | 175 psi (12 bar) | ||
| FACTORY HYDROSTATIC TEST PRESSURE | 500 psi (35 bar) | ||
| MINIMUM OPERATING PRESSURE | 7 psi (0.5 bar) | ||
| TEMPERATURE RATING | 57°C (135°F) / 68°C (155°F) 79°C (175°F) / 93°C (200°F) | ||
| FINISH | Chrome Plated | ||
| ORDERING INFORMATION | Specify temperature rating |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
