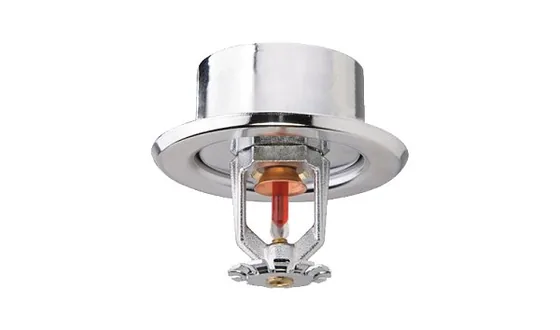

Supplier for TycoPolyester coated brass versions of the TY-B and TY-FRB sprinklers, made as corrosion resistant sprinklers for commercial occupancies where corrosive atmospheres may exist.
Standards and approvals: UL and C-UL Listed
| Specification | Upright 5.6K, 1/2 in. NPT TY3151 | Pendent 5.6K, 1/2 in. NPT TY3251 | HSW* 5.6K, 1/2 in. NPT TY-FRB Quick Response | Upright 5.6K, 1/2 in. NPT TY3131 | Pendent 5.6K, 1/2 in. NPT TY3231 | HSW* 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT TY4151 | Pendent 8.0K, 3/4 in. NPT TY4251 | Upright 8.0K, 3/4 in. NPT TY4131 | Pendent 8.0K, 3/4 in. NPT TY4231 | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIN | TY3151 | TY3251 | TY3351 | TY3131 | TY3231 | TY3331 | TY4151 | TY4251 | TY4131 | TY4231 | |
| SIN entry as printed | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | HSW* 5.6K, 1/2 in. NPT TY-FRB Quick Response | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | HSW* 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | |
| Orientation | Upright | Pendent | HSW* | Upright | Pendent | HSW* | Upright | Pendent | Upright | Pendent | |
| K-factor | 5.6K | 5.6K | 5.6K | 5.6K | 5.6K | 5.6K | 8.0K | 8.0K | 8.0K | 8.0K | |
| Thread | 1/2 in. NPT | 1/2 in. NPT | 1/2 in. NPT | 1/2 in. NPT | 1/2 in. NPT | 1/2 in. NPT | 3/4 in. NPT | 3/4 in. NPT | 3/4 in. NPT | 3/4 in. NPT | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Rating | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | See Tables A, B, C, and D | |
| Frame | Polyester coated Brass | ||||||||||
| Button | L316 Stainless Steel* | ||||||||||
| Compression Screw | L316 Stainless Steel* | ||||||||||
| Bulb | Glass | ||||||||||
| Deflector | Copper/Bronze |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
