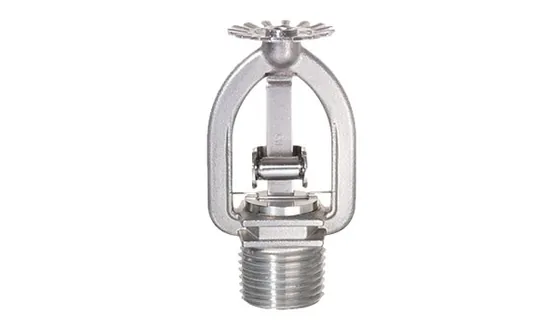

Supplier for TycoStandard response, standard coverage solder type pendent sprinklers in stainless steel, for light, ordinary and extra hazard commercial occupancies with a finished ceiling, such as restaurants, food service production, factories, refineries and chemical plants.
Standards and approvals: FM Approved, CE Certified, Certified to all requirements of NSF/ANSI 61
Sizes: 5.6K, 1/2 in. NPT, 8.0K, 3/4 in. NPT
| Specification | 5.6K, 1/2 in. NPT | 8.0K, 3/4 in. NPT | Details |
|---|---|---|---|
| SIN | TY3280 | TY4280 | |
| SIN entry as printed | 5.6K, 1/2 in. NPT | 8.0K, 3/4 in. NPT | |
| K-factor | 5.6K | 8.0K | |
| Thread | 1/2 in. NPT | 3/4 in. NPT | |
| Response | Standard Response | Standard Response | |
| Discharge Coefficient | K=5.6 gpm/psi½ (80,6 Lpm/bar½) | K=8.0 gpm/psi½ (115,2 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | 165°F (74°C) 212°F (100°C) 280°F (138°C)* *The TYCO Series TY-L 5.6 K-factor Sprinklers with a temperature rating of 280°F (138°C) are not suitable for recessed installations. | 165°F (74°C) 212°F (100°C) 280°F (138°C)* *The TYCO Series TY-L 5.6 K-factor Sprinklers with a temperature rating of 280°F (138°C) are not suitable for recessed installations. | |
| Finishes | Sprinkler: Stainless Steel Escutcheon: White Coated, Chrome Plated, Brass Plated, Stainless Steel, Black Coated, or White Coated Stainless Steel | Sprinkler: Stainless Steel Escutcheon: White Coated, Chrome Plated, Brass Plated, Stainless Steel, Black Coated, or White Coated Stainless Steel | |
| Frame | Stainless Steel | ||
| Sealing Button | Stainless Steel w/ TEFLON | ||
| Ejection Spring (5.6K) | Stainless Steel | ||
| Ejection Spring (8.0K) | INCONEL | ||
| Strut | MONEL | ||
| Hook | MONEL | ||
| Deflector | Stainless Steel | ||
| Fusible Element | Solder, MONEL, Stainless Steel |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
