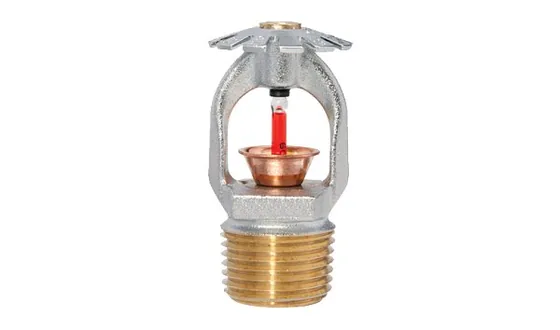

Supplier for TycoA K5.6 quick response, standard coverage old style sprinkler with a 3 mm glass bulb, fitted upright or pendent, giving a spherical pattern with roughly half the water up and half down.
Standards and approvals: UL and C-UL Listed, VdS Approved, LPCB Approved
| Specification | K=5.6 GPM/psi½ (80,6 LPM/bar½) | TY363 | (LPCB Approved only) |
|---|---|---|---|
| Frame | Bronze | ||
| Button | Brass/Copper | ||
| Sealing Assembly | Stainless Steel w/TEFLON | ||
| Bulb | Glass | ||
| Compression Screw | Bronze | ||
| Deflector | Bronze | ||
| SIN | TY363 | TY3630 | |
| K-factor | 5.6 K-factor | 5.6 K-factor | |
| Response | Quick Response | Quick Response | |
| Discharge Coefficient | K=5.6 GPM/psi½ (80,6 LPM/bar½) | K=5.6 GPM/psi½ (80,6 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | 135°F (57°C) 155°F (68°C) 175°F (79°C) 200°F (93°C) 286°F (141°C) | 135°F (57°C) 155°F (68°C) 175°F (79°C) 200°F (93°C) 286°F (141°C) | |
| Finishes | Refer to Table A | Refer to Table A | |
| SIN entry as printed | (LPCB Approved only) |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
