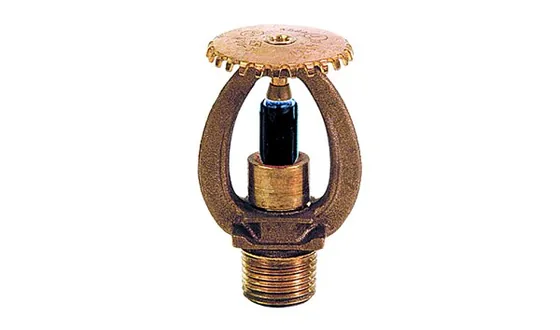

Supplier for TycoStandard response, standard coverage upright and pendent sprinklers with an 11 mm glass bulb, for light, ordinary or extra hazard commercial occupancies where high ambient temperatures may occur.
Standards and approvals: UL and C-UL Listed, FM and LPCB Approved
| Specification | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | Details |
|---|---|---|---|---|---|
| SIN | TY3191 | TY3296 | TY4191 | TY4292 | |
| SIN entry as printed | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | |
| Orientation | Upright | Pendent | Upright | Pendent | |
| K-factor | 5.6K | 5.6K | 8.0K | 8.0K | |
| Thread | 1/2 in. NPT | 1/2 in. NPT | 3/4 in. NPT | 3/4 in. NPT | |
| Response | Standard Response | Standard Response | Standard Response | Standard Response | |
| Discharge Coefficients | K=5.6 gpm/psi½ (80,6 lpm/bar½) | K=5.6 gpm/psi½ (80,6 lpm/bar½) | K=8.0 gpm/psi½ (115,2 lpm/bar½) | K=8.0 gpm/psi½ (115,2 lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | Refer to Table A | Refer to Table A | Refer to Table A | Refer to Table A | |
| Finishes | Refer to Table A | Refer to Table A | Refer to Table A | Refer to Table A | |
| Frame | Bronze | ||||
| Deflector | Bronze | ||||
| Bulb Seats | Bronze | ||||
| Pin | Bronze | ||||
| Button | Bronze | ||||
| Spacer | Bronze | ||||
| Spring Plates | INCONEL | ||||
| Gaskets | Copper | ||||
| Bulb (11 mm dia.) | Glass |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
