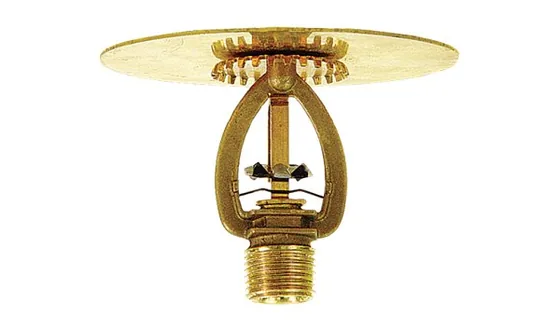

Supplier for TycoA solder type quick response intermediate level sprinkler for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.
Standards and approvals: UL and C-UL Listed, FM Approved
| Specification | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | K=8.0 gpm/psi½ (115,2 Lpm/bar½) |
|---|---|---|---|
| SIN | TY4123 | TY4221 | |
| SIN entry as printed | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | |
| Orientation | Upright | Pendent | |
| K-factor | 8.0K | 8.0K | |
| Thread | 3/4 in. NPT | 3/4 in. NPT | |
| Response | Quick Response | Quick Response | |
| Discharge Coefficients | K=8.0 gpm/psi½ (115,2 Lpm/bar½) | K=8.0 gpm/psi½ (115,2 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | 165ºF (74ºC) | 165ºF (74ºC) | |
| Finishes | Natural Brass, Chrome Plated | Natural Brass, Chrome Plated | |
| Frame | Bronze | ||
| Strut | MONEL | ||
| Deflector | Bronze | ||
| Hook | MONEL | ||
| Link Assembly | Nickel | ||
| Ejection Spring | INCONEL | ||
| Button | Bronze | ||
| Seal | TEFLON | ||
| Shield | Brass |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
