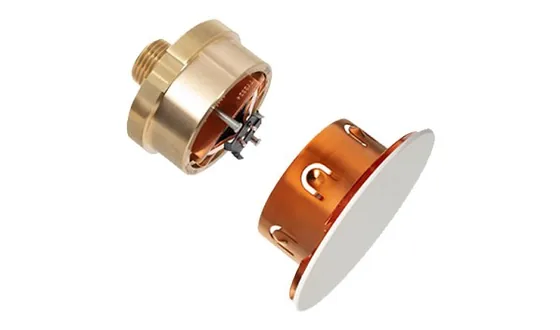

Supplier for TycoA polymeric K3.0 concealed pendent with a flat cover plate for homes, which must be fitted to plastic sprinkler pipe and fittings in residential systems built to NFPA standards.
Standards and approvals: UL and C-UL Listed, Certified to all requirements of NSF/ANSI 61
| Specification | K=3.0 gpm/psi½ (43,2 Lpm/bar½) | TY1534 |
|---|---|---|
| Vertical Adjustment | 5/8 in. (15,9 mm) | |
| Body | PPS* | |
| Button | Copper | |
| Button Insert | Bronze | |
| SIN | TY1534 | |
| K-factor | 3.0 K-factor | |
| Discharge Coefficient | K=3.0 gpm/psi½ (43,2 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Rating | Ordinary* 155°F (68°C) Sprinkler/ 139°F (59°C) Cover Plate *For wet pipe systems only Note: Maximum Ambient Ceiling Temperature for the ordinary temperature configuration is 100°F (38°C) | |
| Finishes | See the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
