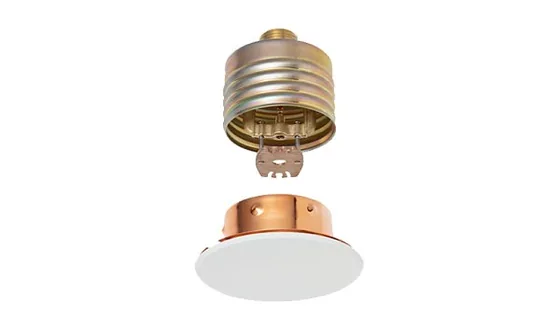

Supplier for TycoTyco Series RFII-C Royal Flush II Concealed Corridor Pendent Sprinkler, K5.6, Quick Response (TFP263)
A 3 mm bulb concealed pendent sprinkler for long, narrow corridors and hallways in light hazard buildings, with a maximum coverage area of 28 ft by 10 ft.
- Tyco states fewer sprinklers and lower system pressure are needed than with traditional extended coverage sprinklers in corridors
- For systems designed to installation rules such as NFPA 13
- Two-piece design with 1/2 in. of vertical adjustment
- 68°C sprinkler with a 59°C plate, or 93°C sprinkler with a 74°C plate
- Maximum working pressure 250 psi (17.2 bar)
- Tyco lists UL listing
Standards and approvals: UL Listed
Specifications
Specifications
| Specification | K = 5.6 gpm/psi½ (80 Lpm/bar½) | TY3582 |
|---|---|---|
| Adjustment | 1/2 in. (12,7 mm) | |
| Frame | Bronze | |
| Support Cup | Plated Steel | |
| Guide Pins | Stainless Steel | |
| Deflector | Brass | |
| Compression Screw | Brass | |
| Bulb | Glass | |
| Cap | Bronze or Copper | |
| SIN | TY3582 | |
| K-factor | 5.6 K-factor | |
| Response | Quick Response | |
| Discharge Coefficient | K = 5.6 gpm/psi½ (80 Lpm/bar½) | |
| Maximum Working Pressure | 250 psi (17,2 bar) | |
| Temperature Rating | 155°F (68°C) Sprinkler; 139°F (59°C) Plate 200°F (93°C) Sprinkler; 165°F (74°C) Plate | |
| Finishes | See the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
