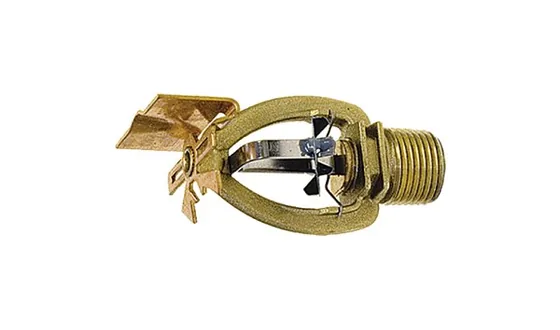

Supplier for TycoTyco Series TY-FRL Extended Coverage Horizontal Sidewall Sprinkler, K8.0, Light Hazard (TFP280)
A solder type K8.0 extended coverage sidewall sprinkler for hydraulically calculated systems in light hazard buildings such as churches, restaurant seating areas, hotels, schools and offices.
- Coverage up to 16 ft wide by 24 ft long
- QREC rating for many of the listed coverage areas
- Fits along a wall or beam side just below a smooth, flat ceiling
- Temperature rating 74°C
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing and FM approval
Standards and approvals: UL and C-UL Listed, FM Approved
Specifications
Specifications
| Specification | EC HSW, 8.0K, 3/4”NPT | K = 8.0 gpm/psi1/2 (115,2 Lpm/bar1/2) |
|---|---|---|
| SIN | TY4322 | |
| SIN entry as printed | EC HSW, 8.0K, 3/4”NPT | |
| Orientation | EC HSW | |
| K-factor | 8.0K | |
| Thread | 3/4”NPT | |
| Discharge Coefficient | K = 8.0 gpm/psi1/2 (115,2 Lpm/bar1/2) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Ratings | 165ºF (74 ºC) | |
| Finishes | Natural Brass, Chrome Plated | |
| Frame | Bronze | |
| Strut | Monel | |
| Deflector | Bronze | |
| Hook | Monel | |
| Link Assembly | Nickel | |
| Ejection Spring | Inconel | |
| Button | Bronze | |
| Seal | TEFLON |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
