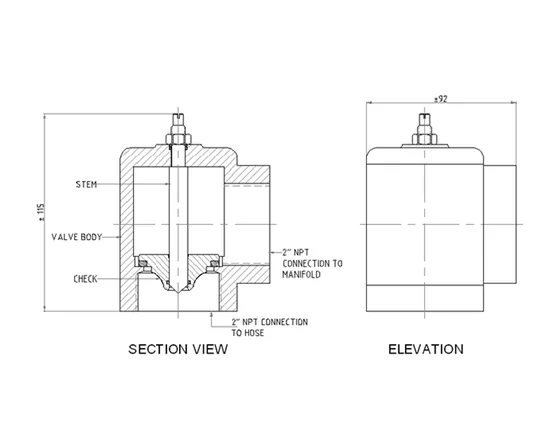

Dealer for HoneywellA check valve fitted at the discharge manifold of a multiple cylinder system that prevents back flow from the manifold if the system discharges unintentionally.
Honeywell has not published a specification table for this model. Ask us for the data sheet.
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
Sizes: 34 L, 120 L, 140 L, 180 L
A seamless cylinder for HFC-227ea and FK-5-1-12 clean agents, fitted with a siphon tube, cylinder valve, actuation port for the electric control head, discharge outlet port and pressure gauge.
A mild steel strap that holds clean agent cylinders in the vertical position.
A flexible hose that connects the cylinder valve to the pipe, the manifold or the check valve in HFC-227ea and FK-5-1-12 systems.
Brass nozzles that set the flow rate and spread the agent through the protected area, attached to the discharge piping by a female NPT thread.
An electromechanical actuator mounted on the master cylinder actuation port that opens the cylinder on a 24 V DC signal from the fire alarm panel. It also has a manual release plunger.
A 1/4 inch hose that connects pressure activated devices, such as the N2 pilot cylinder, slave cylinders and pressure switch, to the system.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Pre-engineered, retrofittable suppression system built from ceiling mounted agent containers in 2, 5, 10 and 15 kg, linked to detectors and a control panel. It comes with Fluoroketone (FK) clean agent or ABC powder MAP 90, and all units fire together for total flooding.
A small self actuating Fluoroketone (FK) unit for enclosed micro environments, released mechanically by a heat sensitive glass bulb with no power supply. The Intuitive version sits inside the space; the Adaptive version sits outside with only its bulb inside, for spaces too small to hold the unit.
Sizes: 2, 4, 6 kg
Pre-engineered clean agent system for electrical cabinets, server racks and wind turbine alternator zones, where the UL listed detection tube both senses the fire and delivers the agent at the source. Available in 2, 4 and 6 kg cylinders with FE-36 (HFC-236fa), FK-5-1-12 or FM-200 (HFC-227ea).
Sizes: 2, 4, 6 kg
Indirect clean agent system for CNC and EDM machines, dry type transformers, DG sets, fume hoods and wind turbines: the red detection tubing only senses the fire and large nozzles then flood the work zone with clean agent. Offered in 2, 4 and 6 kg cylinders.
Sizes: 2 kg, 4 kg
Self-actuating, pre-engineered clean agent system for enclosed panels and cabinets, developed and made by Gunnebo India. A pressurised heat sensing tube ruptures at the fire and releases Grenoz 1230 at the point where the fire starts.
Sizes: 10 kg
Automatic clean agent system for small unmanned rooms such as server, UPS, battery and record rooms. A ceiling mounted 10 kg Grenoz 1230 cylinder discharges when point detectors and a fire alarm panel trigger its electrical actuator.
