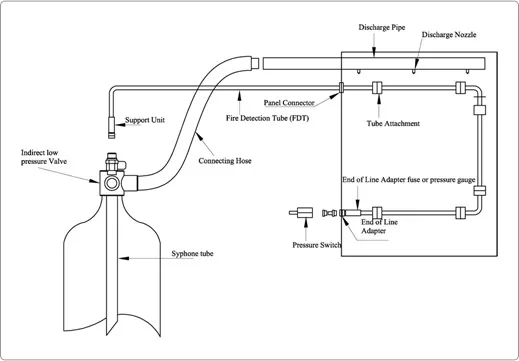

Authorised distributor for KanexIndirect clean agent system for CNC and EDM machines, dry type transformers, DG sets, fume hoods and wind turbines: the red detection tubing only senses the fire and large nozzles then flood the work zone with clean agent. Offered in 2, 4 and 6 kg cylinders.
Standards and approvals: UL, CE, FM, EPA SNAP
Sizes: 2, 4, 6 kg
| Size | Pressure (service / max / test) |
|---|---|
| 2, 4, 6 kg | 13.5-15 bar |
| Specification | 2, 4, 6 kg |
|---|---|
| Extinguishing Agent | FE 36/HFC236fa FK-5-1-12 FM 200/HFC227ea |
| Cylinder Approvals | CE |
| Gas Approvals | UL/FM/EPA SNAP |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 2, 4, 6 kg
Pre-engineered clean agent system for electrical cabinets, server racks and wind turbine alternator zones, where the UL listed detection tube both senses the fire and delivers the agent at the source. Available in 2, 4 and 6 kg cylinders with FE-36 (HFC-236fa), FK-5-1-12 or FM-200 (HFC-227ea).
CO2 based direct system for electrical cabinets, transformers, DG sets and fume hoods, with detection tubing routed around the critical components for 360 degree detection and discharge at the source. Cylinder sizes 4.5 and 6.5 kg subject to design calculation.
Sizes: 4.5, 6.5, 9, 22.5, 45 kg
Indirect high pressure CO2 systems for panels, dry type transformers and generators, CNC and EDM machines and fume hoods, where the detection tube senses the fire and nozzles deliver CO2 as a gentle mist. Cylinder sizes from 4.5 kg up to 45 kg depending on the enclosure.
Pre-engineered direct release system using Novec 1230 clean agent for the electrical compartment of a wind turbine, also suitable for cable runs and trays. Cylinders are offered as 2 and 5 kg (CE) or 2.5, 5 and 10 lbs (DOT).
Indirect release Novec 1230 system recommended for wind turbine electrical compartments, where the tubing detects the fire and large nozzles flood the zone with clean agent. Cylinders in 2 and 5 kg (CE) or 2.5, 5 and 10 lbs (DOT).
Engineered total flooding systems that fill a room with FM-200 (HFC-227ea) or Novec 1230 to put out a fire without wetting or contaminating equipment. Designed for server rooms, data centres and other areas where water would cause as much loss as the fire.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Pre-engineered, retrofittable suppression system built from ceiling mounted agent containers in 2, 5, 10 and 15 kg, linked to detectors and a control panel. It comes with Fluoroketone (FK) clean agent or ABC powder MAP 90, and all units fire together for total flooding.
A small self actuating Fluoroketone (FK) unit for enclosed micro environments, released mechanically by a heat sensitive glass bulb with no power supply. The Intuitive version sits inside the space; the Adaptive version sits outside with only its bulb inside, for spaces too small to hold the unit.
Sizes: 2 kg, 4 kg
Self-actuating, pre-engineered clean agent system for enclosed panels and cabinets, developed and made by Gunnebo India. A pressurised heat sensing tube ruptures at the fire and releases Grenoz 1230 at the point where the fire starts.
Sizes: 10 kg
Automatic clean agent system for small unmanned rooms such as server, UPS, battery and record rooms. A ceiling mounted 10 kg Grenoz 1230 cylinder discharges when point detectors and a fire alarm panel trigger its electrical actuator.
An automatic suppression system for electrical panels, switchgear, control cabins and server racks that detects a fire and puts it out at the source. It uses a clean agent that leaves no residue and is safe on live panels.
Sizes: 80 and 140 L
A clean agent system that protects hazard areas with inert gas, using IG55, IG541, IG100 or IG01 stored in 80 and 140 litre cylinders. It carries VdS approval and is designed with VdS calculation software.
