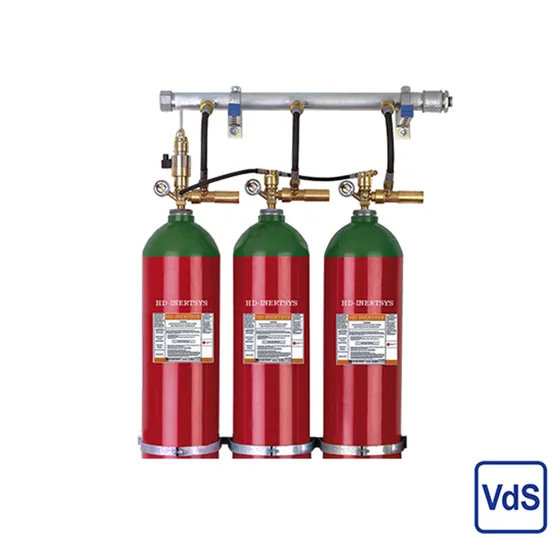

Dealer for HD FireA clean agent system that protects hazard areas with inert gas, using IG55, IG541, IG100 or IG01 stored in 80 and 140 litre cylinders. It carries VdS approval and is designed with VdS calculation software.
Standards and approvals: VdS
Sizes: 80 and 140 L
| Specification | 80 and 140 L |
|---|---|
| Cylinder Sizes | 80 and 140 litre |
| Operating Pressure | 200 bar (2900 psi), 300 bar (4351 psi), depending on volume and concentration requirements |
| Releasing Device | Manual, Pneumatic, Electro-Magnetic |
| Approval | VdS |
| SUPPRESSION AGENT | IG55, IG541, IG100, IG01 |
| CYLINDER SIZES | 80 and 140L |
| OPERATING PRESSURE | 200/300 Bar |
| DISCHARGE VALVE | Brass |
| RELEASE DEVICE | Manual Pneumatic Electro-Magnetic |
| DISCHARGE NOZZLES | Brass |
| APPROVAL | VdS Approved |
| ORDERING INFORMATION | Size of Cylinder, Number of Cylinders & Nozzles, Pressure Rating, Requirement of Accessories such as Directional Valve, etc. |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
Sizes: 2 kg to 18 kg
An in-cabinet fire suppression system that uses CO2, with a UL Listed heat-sensing tube for detection and an automatic IHP valve in brass. The detection tube is charged with CO2 from the system cylinder, so it needs no separate nitrogen cylinder.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Pre-engineered, retrofittable suppression system built from ceiling mounted agent containers in 2, 5, 10 and 15 kg, linked to detectors and a control panel. It comes with Fluoroketone (FK) clean agent or ABC powder MAP 90, and all units fire together for total flooding.
A small self actuating Fluoroketone (FK) unit for enclosed micro environments, released mechanically by a heat sensitive glass bulb with no power supply. The Intuitive version sits inside the space; the Adaptive version sits outside with only its bulb inside, for spaces too small to hold the unit.
Sizes: 2, 4, 6 kg
Pre-engineered clean agent system for electrical cabinets, server racks and wind turbine alternator zones, where the UL listed detection tube both senses the fire and delivers the agent at the source. Available in 2, 4 and 6 kg cylinders with FE-36 (HFC-236fa), FK-5-1-12 or FM-200 (HFC-227ea).
Sizes: 2, 4, 6 kg
Indirect clean agent system for CNC and EDM machines, dry type transformers, DG sets, fume hoods and wind turbines: the red detection tubing only senses the fire and large nozzles then flood the work zone with clean agent. Offered in 2, 4 and 6 kg cylinders.
Sizes: 2 kg, 4 kg
Self-actuating, pre-engineered clean agent system for enclosed panels and cabinets, developed and made by Gunnebo India. A pressurised heat sensing tube ruptures at the fire and releases Grenoz 1230 at the point where the fire starts.
Sizes: 10 kg
Automatic clean agent system for small unmanned rooms such as server, UPS, battery and record rooms. A ceiling mounted 10 kg Grenoz 1230 cylinder discharges when point detectors and a fire alarm panel trigger its electrical actuator.
