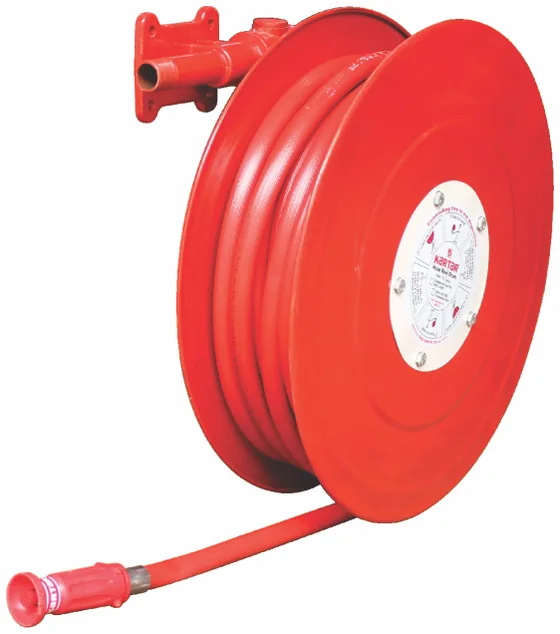

Authorised distributor for Kartar ValvesA complete Malaysian type fire hose reel with 20 mm ISI marked hose in 30 m, 36 m or 40 m and a brass 3/4 inch shut off nozzle, hydraulically crimped. Choose rubber hose to IS 444 (K912M All.R) or thermoplastic hose to IS 12585 (K912M All).
Standards and approvals: IS : 444, ISI marked, IS : 12585
| Specification | K912M All.R | K912M All |
|---|---|---|
| Item Description | KARTAR Fire Hose Reel (Malaysian Type) with Rubber Hose as per IS : 444 (Type-1) ISI marked with Brass 3/4 Shut off Nozzle (Hydraulically Crimped) | KARTAR Fire Hose Reel (Malaysian Type) with Thermoplastic Hose as per IS : 12585 (Type-1) ISI marked with Brass 3/4 Shut off Nozzle (Hydraulically Crimped) |
| Type | for 20mm x 30mts hose | for 20mm x 36mts hose | for 20mm x 40mts hose | for 20mm x 30mts hose | for 20mm x 36mts hose | for 20mm x 40mts hose |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
A complete compact type fire hose reel with 20 mm ISI marked hose in 30 m, 36 m or 40 m and a brass 3/4 inch shut off nozzle, hydraulically crimped. Choose rubber hose to IS 444 (K912C All.R) or thermoplastic hose to IS 12585 (K912C All).
A Malaysian type fire hose reel supplied without hose, for 20 mm or 25 mm hose. Useful for replacing a drum or fitting hose of your choice.
A single door hose box in M.S. or FRP for one set of hose with its coupling and one branch pipe: K918 S1 for 15 m hose and K918 S2 for 30 m hose. The maker's website heading also mentions a 13 m size.
A double door hose box in M.S. or FRP that holds 2 sets of 15 m hose with couplings and one branch pipe.
MS fire doors listed by Kartar in two sizes, 2100 mm x 900 mm and 2100 mm x 1200 mm. Kartar gives only the name and sizes, so we confirm the construction and use with the maker before quoting.
A fireman's axe, listed by Kartar with its hose boxes as K921.
Manual swing type first aid hose reel designed to IS 884, with a 180 degree swivel, aluminium alloy waterways and a 12 bar operating pressure.
Compact fixed first aid hose reel with corrosion free waterways and a red powder coated finish, rated for 12 bar.
Standalone watermist hose reel that connects to an existing water pipe or hydrant and a pressure line, turning the supply into mist with droplets under 40 microns. It is rated for all classes of fire and for electrically started fires.
Wall mounted hose reel drum that swings through 180 degrees, designed as per IS:884 and supplied with a 20 mm thermoplastic or rubber hose and a crimped nozzle. Minimax notes that it carries no BIS marking.
Double door fire hose box in CR sheet with a full front acrylic glass inspection window and common key lock. At 750 x 600 x 250 mm it holds 2 lengths of 15 m hose and a branch pipe with nozzle.
A swinging arm first aid hose reel, permanently connected to the building's water supply so one person can use it within seconds. The hose can be pulled out in any direction through 180°, reaching a wide area around the reel.
