A first aid hose reel gives building occupants a permanently connected hose they can use before the fire brigade arrives, and a hose box keeps hydrant hoses, branch pipes and landing valve accessories protected and within reach at each hydrant point. Fire Protection System supplies hose reels, hose reel foam stations, watermist hose reels, hose boxes and cabinets from Kartar Valves, New Age, Ceasefire, Minimax, Savemax, Aaag and Balaji Fire Safety in Bhopal and across Madhya Pradesh.

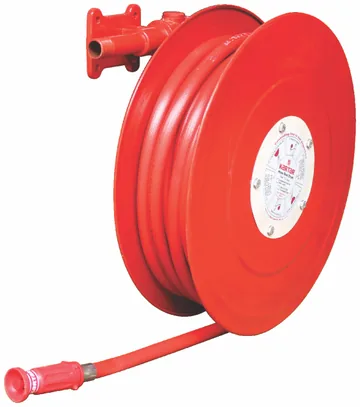

A complete Malaysian type fire hose reel with 20 mm ISI marked hose in 30 m, 36 m or 40 m and a brass 3/4 inch shut off nozzle, hydraulically crimped. Choose rubber hose to IS 444 (K912M All.R) or thermoplastic hose to IS 12585 (K912M All).

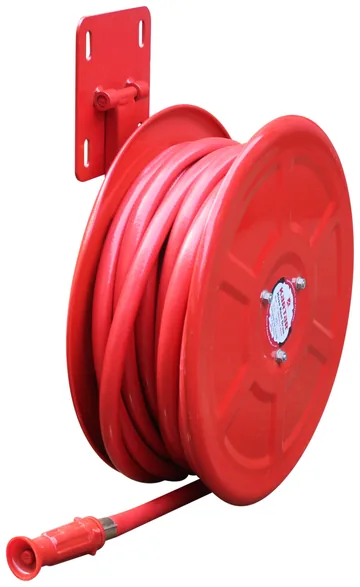

A complete compact type fire hose reel with 20 mm ISI marked hose in 30 m, 36 m or 40 m and a brass 3/4 inch shut off nozzle, hydraulically crimped. Choose rubber hose to IS 444 (K912C All.R) or thermoplastic hose to IS 12585 (K912C All).

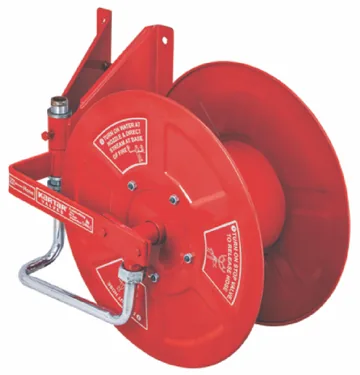

A Malaysian type fire hose reel supplied without hose, for 20 mm or 25 mm hose. Useful for replacing a drum or fitting hose of your choice.

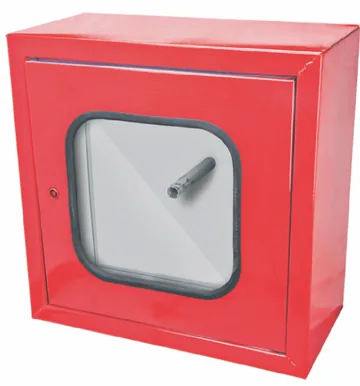

A single door hose box in M.S. or FRP for one set of hose with its coupling and one branch pipe: K918 S1 for 15 m hose and K918 S2 for 30 m hose. The maker's website heading also mentions a 13 m size.

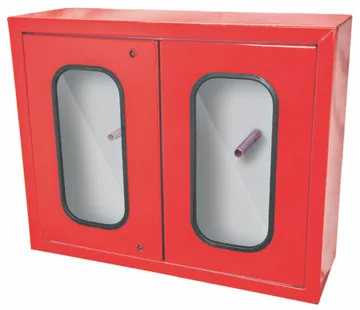

A double door hose box in M.S. or FRP that holds 2 sets of 15 m hose with couplings and one branch pipe.

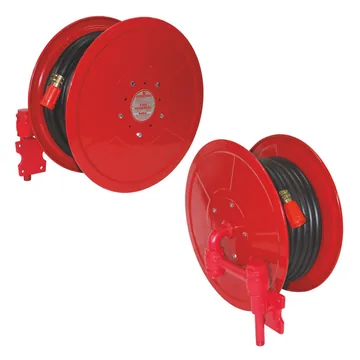

Manual swing type first aid hose reel designed to IS 884, with a 180 degree swivel, aluminium alloy waterways and a 12 bar operating pressure.

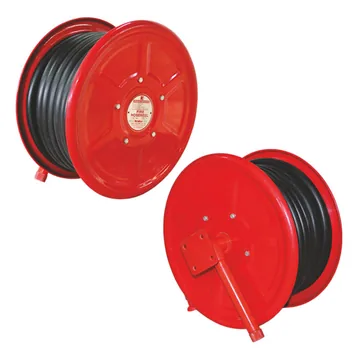

Compact fixed first aid hose reel with corrosion free waterways and a red powder coated finish, rated for 12 bar.

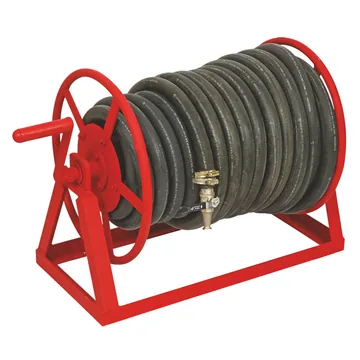

Pedestal mounted hose reel on a bearing for smooth turning, with a threaded or flanged inlet and a corrosion free waterway, rated for 12 bar.

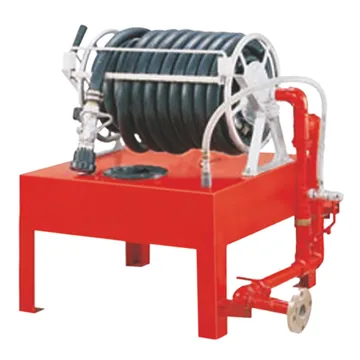

Hose reel with its own 225 litre foam tank, inline inductor from 0 to 6% and jet spray nozzle, on a pedestal bearing, rated for 12 bar.

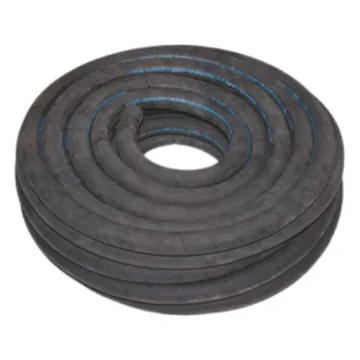

High pressure braided rubber hose to IS 444 Type I, II and III for hose reels and general water delivery.

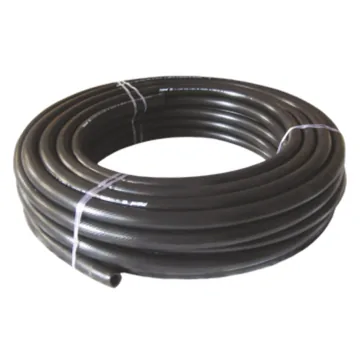

Hose reel hose in a special grade thermoplastic hybrid compound that is light, takes high pressure and is flame resistant.

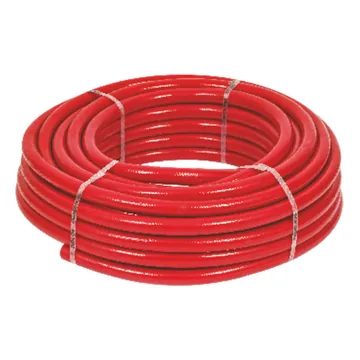

Hose reel hose made of high quality PVC polymer, light in weight and durable.

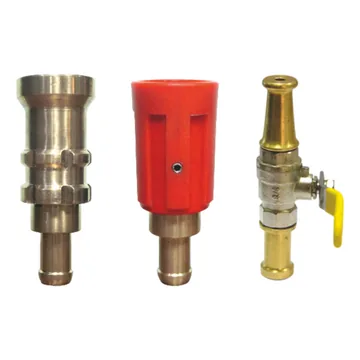

Jet spray and shut off hose reel nozzle in gunmetal to BS 1400, with an optional chrome plated finish, also offered in SS 304.

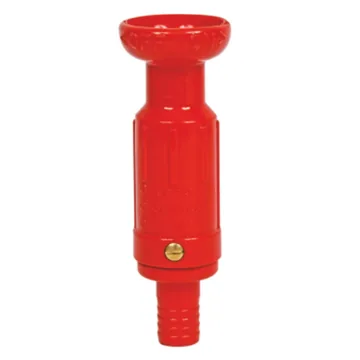

Strong, corrosion free PVC jet spray nozzle with a serrated end for fitting the hose, rated 16 GPM at 100 psi.

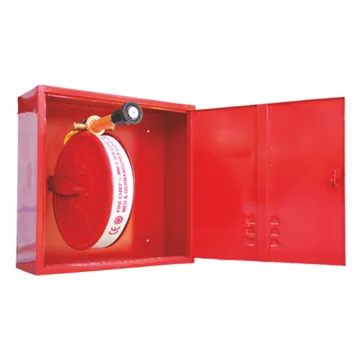

Wall mounted cabinet for swinging or fixed hose reels, made of 1.6 mm CRCA sheet with a threaded inlet and red finish.

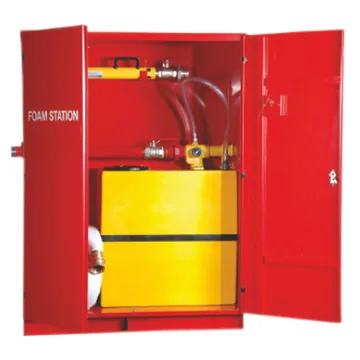

Wall mounted cabinet listed for swinging and fixed hose reels at a foam station, made of 1.6 mm CRCA sheet with a threaded inlet and red finish.

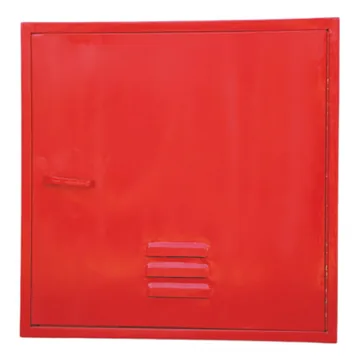

Lightweight, weatherproof wall mounted hose box with an MS stand for one 7.5 m or 15 m hose, 24 x 24 x 10 inch.
Weatherproof hose box for two 7.5 m or 15 m hoses and one nozzle, in MS or FRP, wall mounted with an MS stand.

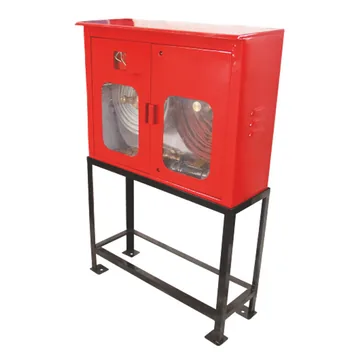

Stand type double hose cabinet. New Age's page for it repeats the details of its dry riser inlet cabinet (16 gauge MS sheet, 18 x 18 x 12 inch, acrylic door), so FPS confirms the exact build and size with the maker when quoting.

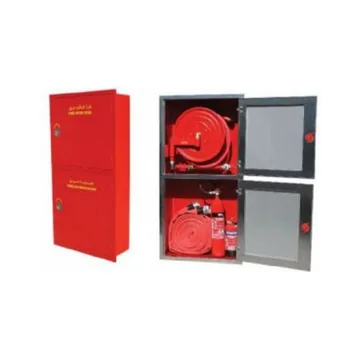

Custom sized cabinet with double vertical doors for a fire hose reel, layflat hose, branch pipe and extinguisher, surface mounted, recessed or semi-recessed.

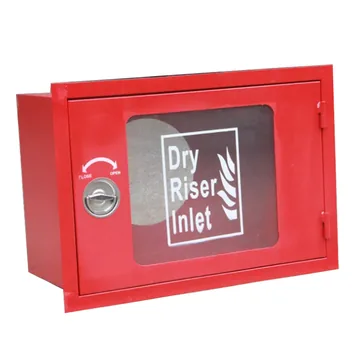

Wall mounted cabinet for dry riser inlet breeching connections, in 16 gauge MS sheet, 18 x 18 x 12 inch, with a single door fronted by 3 mm acrylic sheet.

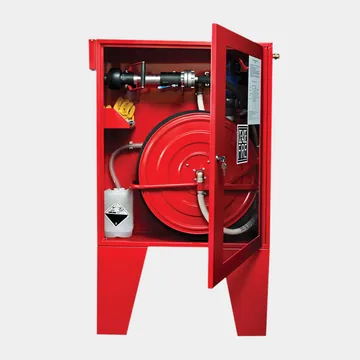

Standalone watermist hose reel that connects to an existing water pipe or hydrant and a pressure line, turning the supply into mist with droplets under 40 microns. It is rated for all classes of fire and for electrically started fires.
Wall mounted hose reel drum that swings through 180 degrees, designed as per IS:884 and supplied with a 20 mm thermoplastic or rubber hose and a crimped nozzle. Minimax notes that it carries no BIS marking.

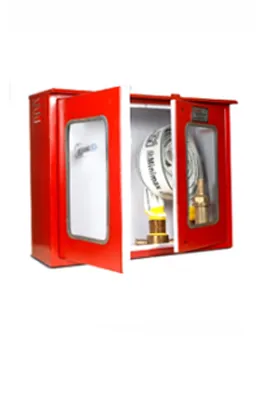

Double door fire hose box in CR sheet with a full front acrylic glass inspection window and common key lock. At 750 x 600 x 250 mm it holds 2 lengths of 15 m hose and a branch pipe with nozzle.

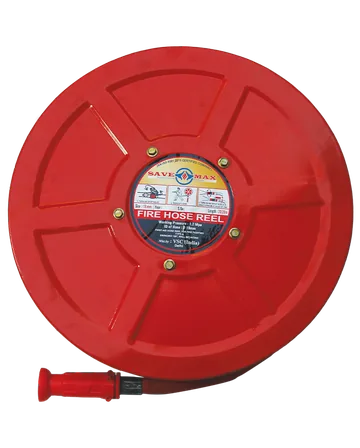

A swinging arm first aid hose reel, permanently connected to the building's water supply so one person can use it within seconds. The hose can be pulled out in any direction through 180°, reaching a wide area around the reel.

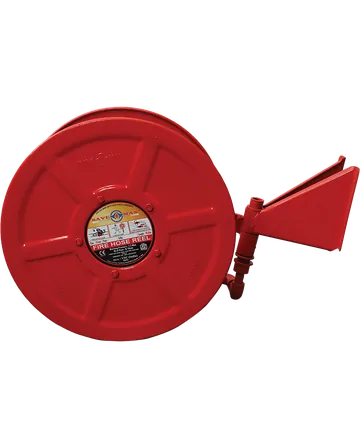

A first aid hose reel built to the BIS specification IS 884 for installation in buildings as per NBC requirements. Savemax notes that this type is mandatory in most government and CPWD specified projects.

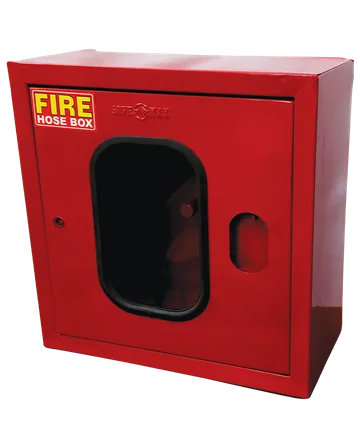

A single door mild steel cabinet that houses the fire hose, branch pipe and landing valve accessories at each floor, keeping them protected and within reach. It is offered in standard 18 SWG sheet for general commercial and industrial use, or heavier 16 SWG for basements, parking areas and industrial floors.

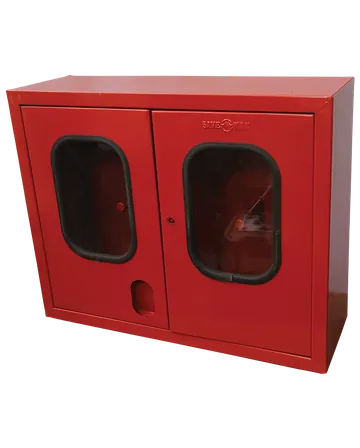

A double door mild steel hose cabinet that holds a landing valve assembly together with a hose reel or RRL hose in one enclosure. It is available in standard 18 SWG or heavier 16 SWG for demanding locations.

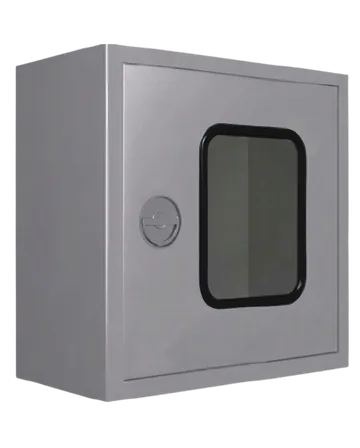

A single door hose cabinet with a stainless steel body for sites that need corrosion resistance, such as food processing plants, pharmaceutical facilities and high specification hospitality projects.

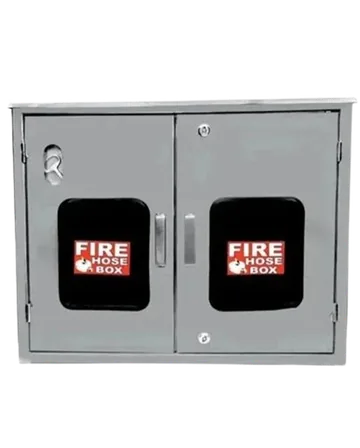

A double door hose cabinet in stainless steel, the highest specification hose box in the Savemax range. It combines the double door layout with a corrosion resistant body.
A manual swing type first aid hose reel with a red powder coated mild steel disc, holding 30 m of rubber or PVC braided hose, with a control nozzle to direct the flow.
A swing type hose reel with a built in automatic valve that opens as the reel turns and gives full flow within two turns, holding 30 m of hose.
A heavy duty hose reel for manufacturing plants and warehouses, mounted on a wall or on the ground, holding up to 50 m of hose with a manual or automatic valve.

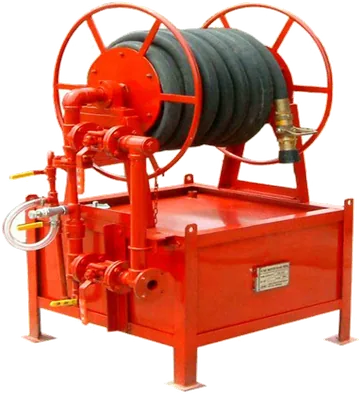

A self contained hose reel foam unit for fires or spills of flammable liquids, needing only water flow to work. The reel and foam tank are SS 304, with nozzles matched to the foam inductor.
A single door hose cabinet in 18 SWG CRCA steel with red powder coating, holding one 63 mm, 15 m hose and one nozzle.
Sizes: 450 mm X 600 mm X 250 mm

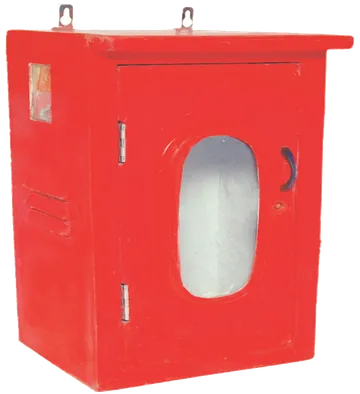

A single hose cabinet in FRP in fire red, holding one 63 mm, 15 m hose and one nozzle, surface mounted.
A double hose cabinet in 18 SWG CRCA steel with red powder coating, holding two 63 mm, 15 m hoses and two nozzles, with room for a hose reel or hose cradle as an option.
Sizes: 750 mm X 600 mm X 250 mm

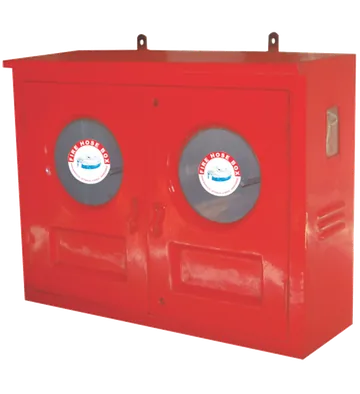

A double hose cabinet in FRP in fire red, holding two 63 mm, 15 m hoses and two nozzles, surface mounted.

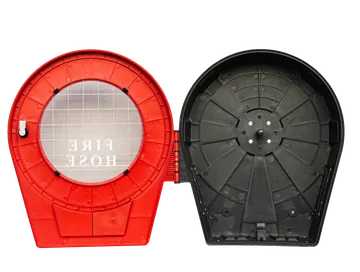

A polypropylene hose box in red and dark grey for one 63 mm, 15 m hose and a handline nozzle, with a transparent acrylic front that can be broken in an emergency. Aaag suggests it for hotels and real estate projects.

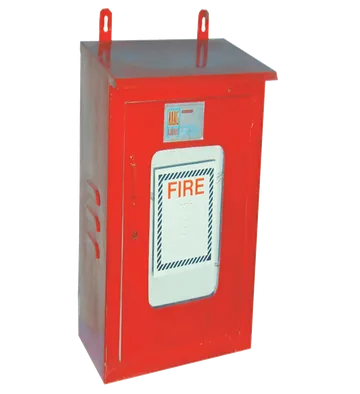

A surface mounted cabinet in fire red that protects one portable extinguisher from the weather, in 18 SWG CRCA steel or stainless steel.

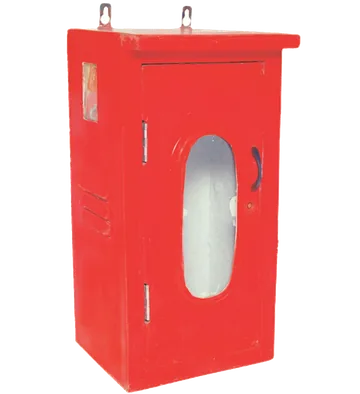

A surface mounted FRP cabinet in fire red that protects one portable extinguisher from the weather.
Sizes: 19 mm, 25 mm, 25 MM ONLY

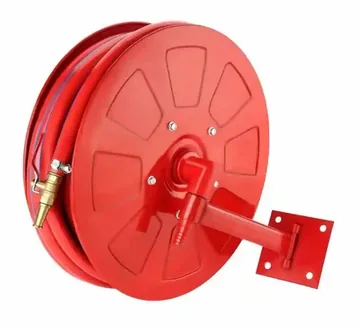

A first aid hose reel drum sold as a complete set, with 30 m of thermoplastic or TPU hose on a red powder coated mild steel drum for wall mounting. Offered as the 20 mm Bombay type and the 25 mm Ahmadabad pattern set.
Sizes: 400X400X200, 450 x 450 x 250 mm

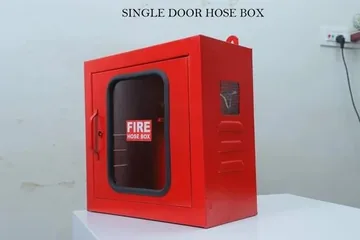

A wall mounted single door hose box in 22 gauge mild steel with a transparent acrylic front, for storing a fire hose and branch pipe at a hydrant point.
Sizes: 750 x 600 x 250 mm

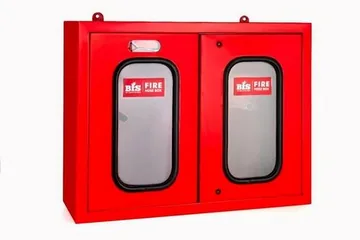

A double door hose box in mild steel, 750 x 600 x 250 mm, with transparent acrylic doors and a red powder coated, rust proof finish.
Sizes: 15 miter, 400 x 400 x 200 mm, 450 x 450 x 250 mm, 750 x 600 x 250 mm

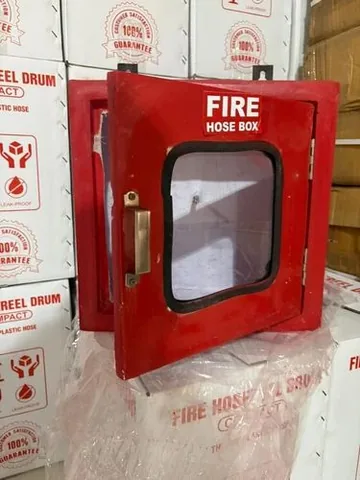

A single door hose box in FRP (fibre reinforced plastic), light and weather resistant for indoor or outdoor use, with a transparent acrylic front, UV resistant paint and a lockable system.
Sizes: 725 x 550 x 200 mm, 725x550x200, 750 x 600 x 250 mm

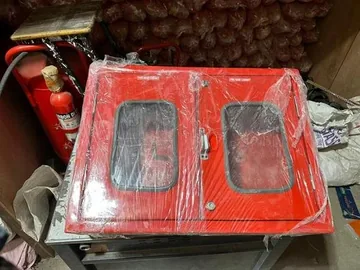

A double door hose box in FRP that holds two 15 m hoses and a branch pipe, with transparent acrylic doors. Balaji describes it as rust proof and termite proof.
MS fire doors listed by Kartar in two sizes, 2100 mm x 900 mm and 2100 mm x 1200 mm. Kartar gives only the name and sizes, so we confirm the construction and use with the maker before quoting.
A fireman's axe, listed by Kartar with its hose boxes as K921.
For a first aid hose reel, first choose the standard and the reel type. IS 884 is the BIS specification for first aid hose reels: the Savemax ISI type reel conforms to it, and Savemax notes this type is mandatory in most government and CPWD specified projects, while New Age's swing type reel and the Minimax swinging Type A drum are designed to IS 884 (Minimax notes its drum carries no BIS marking). Swinging reels turn through 180 degrees so the hose can be pulled out in any direction. Kartar Valves, New Age, Savemax and Aaag also offer Malaysian type, compact, fixed, stand mounted and heavy duty reels, and Aaag's automatic swing reel opens its valve as the reel turns.
Then match the hose and the risk. Savemax reels use 25 mm semi-rigid hose with a reel capacity of typically 30 m, Kartar Valves and Minimax fit 20 mm hose in rubber to IS 444 or thermoplastic to IS 12585 (Kartar in 30, 36 or 40 m), Balaji Fire Safety sells 20 mm and 25 mm drum sets with 30 m of hose, and Aaag's heavy duty reel holds up to 50 m. Minimax lists a jet range of at least 6.0 m at an inlet pressure of at least 7.0 bar, and New Age rates its reels at 12 bar. For flammable liquids, New Age and Aaag offer hose reel foam stations with their own foam tank, and where fires may involve electrical equipment, Ceasefire's CF 2000 watermist hose reel makes droplets under 40 microns and is stated by Ceasefire to be non conductive up to 35 kV.
For hose boxes, match the door layout to what the box must hold. A single door box holds one hose with its branch pipe and landing valve accessories, and Kartar Valves offers it for 15 m (K918 S1) or 30 m (K918 S2) hose. A double door box holds two 15 m hoses with a branch pipe or nozzles, as in the 750 x 600 x 250 mm boxes from Minimax, Aaag and Balaji Fire Safety, and the Savemax double door box fits a landing valve assembly with a hose reel or RRL hose in one enclosure. New Age also makes hose reel cabinets, custom recessed cabinets and dry riser inlet cabinets.
Then choose the material and sheet thickness. Most boxes here are mild steel or CRCA steel with a red powder coat: Aaag uses 18 SWG CRCA sheet, Minimax CR sheet of 18, 16 or 14 SWG, and Savemax 18 SWG for general installations or heavier 16 SWG for basements, parking areas and industrial floors. FRP boxes come from Kartar Valves, New Age, Minimax, Aaag and Balaji Fire Safety, Aaag also makes a polypropylene box with an acrylic front that can be broken in an emergency, and Savemax's stainless steel boxes suit food processing, pharmaceutical and hospitality sites. Savemax lists its boxes as compatible with NBC and TAC hose cabinet specifications.
