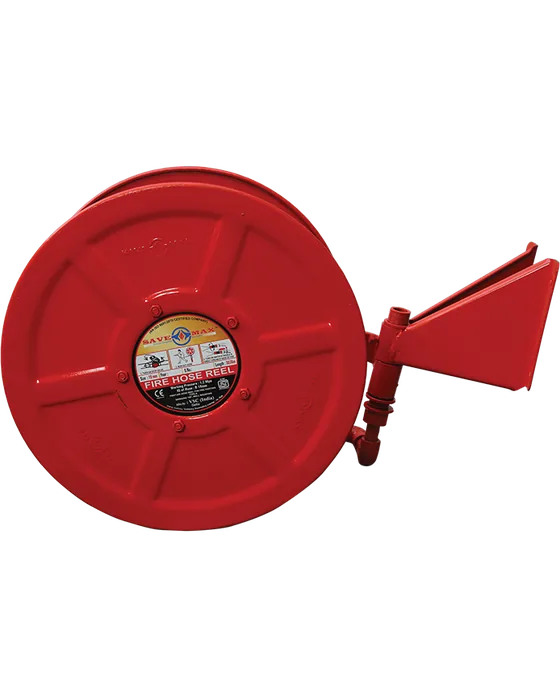

Authorised distributor for SavemaxA first aid hose reel built to the BIS specification IS 884 for installation in buildings as per NBC requirements. Savemax notes that this type is mandatory in most government and CPWD specified projects.
Standards and approvals: IS 884, BIS/ISI Marked, CPWD Approved, Euro Certified
| Specification | Details |
|---|---|
| Hose Type | 25mm semi-rigid hose |
| Reel Capacity | Typically 30m |
| Standard | IS 884 (First Aid Hose Reel for Fire Fighting) |
| Ideal For | Commercial buildings, offices, hospitals, hotels, residential complexes, malls |
| Certifications | BIS/ISI Marked | CPWD Approved | Euro Certified |
Specifications as published by Savemax. Please confirm the exact model with us before ordering.
A single outlet landing valve in stainless steel, the standard choice for most wet riser systems. It is installed at each floor landing with a 63 mm outlet for connecting the fire hose.
A dual outlet stainless steel landing valve for floor landings where two hose lines may have to run at the same time. It is typically specified for high risk occupancies, large floor plates and basements.
The fitting on the end of a fire hose that controls the discharge pattern and flow of water, made in stainless steel. It fits standard 63 mm RRL hose couplings and gives a jet or spray for direct attack or cooling.
Sizes: 15m, 30m
Rubberised reinforced lined fire hose to IS 636, supplied with stainless steel instantaneous couplings already fitted so it can go straight into a hose box or cabinet. It comes in 15 m and 30 m lengths.
A swinging arm first aid hose reel, permanently connected to the building's water supply so one person can use it within seconds. The hose can be pulled out in any direction through 180°, reaching a wide area around the reel.
An external fire brigade inlet, also called a Siamese connection, with two connections feeding one internal riser, fitted on the facade or boundary wall. It lets the fire brigade pump water from its tanker into the building's wet riser or sprinkler system.
A complete Malaysian type fire hose reel with 20 mm ISI marked hose in 30 m, 36 m or 40 m and a brass 3/4 inch shut off nozzle, hydraulically crimped. Choose rubber hose to IS 444 (K912M All.R) or thermoplastic hose to IS 12585 (K912M All).
A complete compact type fire hose reel with 20 mm ISI marked hose in 30 m, 36 m or 40 m and a brass 3/4 inch shut off nozzle, hydraulically crimped. Choose rubber hose to IS 444 (K912C All.R) or thermoplastic hose to IS 12585 (K912C All).
Manual swing type first aid hose reel designed to IS 884, with a 180 degree swivel, aluminium alloy waterways and a 12 bar operating pressure.
Compact fixed first aid hose reel with corrosion free waterways and a red powder coated finish, rated for 12 bar.
Standalone watermist hose reel that connects to an existing water pipe or hydrant and a pressure line, turning the supply into mist with droplets under 40 microns. It is rated for all classes of fire and for electrically started fires.
Wall mounted hose reel drum that swings through 180 degrees, designed as per IS:884 and supplied with a 20 mm thermoplastic or rubber hose and a crimped nozzle. Minimax notes that it carries no BIS marking.
