New Age Swing Type Hose Reel, IS 884
Manual swing type first aid hose reel designed to IS 884, with a 180 degree swivel, aluminium alloy waterways and a 12 bar operating pressure.

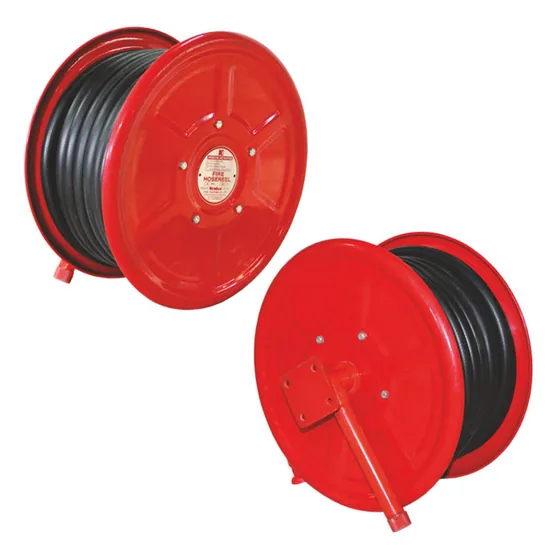

Supplier for New AgeNew Age Fixed Type Hose Reel
Compact fixed first aid hose reel with corrosion free waterways and a red powder coated finish, rated for 12 bar.
- Compact, fixed design
- Corrosion free waterways
- Reel in galvanised steel, SS 304 or SS 316, red powder coated
- Rubber, thermoplastic or PVC hose
- Operating pressure 12 bar
Specifications
Specifications
| Specification | NFF-HR-FT |
|---|---|
| Item Code | NFF-HR-FT |
| Hose Reel Material | Galvanized Steel Stainless Steel Gr. 304 Stainless Steel Gr. 316 |
| Hose Diameter | ¾” 1” 1 ½ |
| Shut Off Nozzle | PVC Gunmetal Stainless Steel |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
