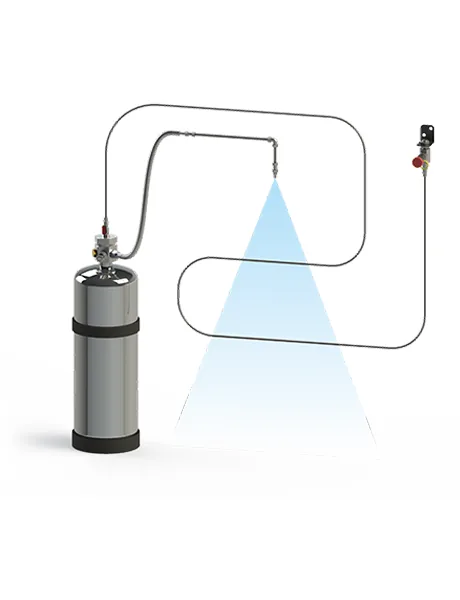

Authorised distributor for KanexA wet chemical system for commercial kitchen hoods and cooking lines, using a continuous pneumatic sensor tube fitted inside the extractor hood above the cooking area. The tube bursts at 175 degrees C and floods the cooking zone with Class F agent.
Standards and approvals: CE, LPCB
Sizes: 9 L
| Size | Pressure (service / max / test) |
|---|---|
| 9 L | 16 bar |
| Specification | 9 L |
|---|---|
| Extinguishing Agent | (Rotarex) Wet Chemical System |
| Sensor Tube | Grey |
| Sensor Tube Burst Temperature | 175 deg C |
| Cylinder | SS |
| Valve | Pi-Marking |
| Cylinder Approvals* | CE |
| System Approvals* | LPCB |
| Internal Diameter of Tube | 4 mm |
| Outer Diameter of Tube | 6 mm |
| Height of Cylinder | Approx. 350 mm |
| Diameter of Cylinder | 175 mm |
| Operating Temperature | 5 Deg C to 65 Deg C |
| Super pressurizing Agent | Dry Nitrogen |
| Cylinder Thickness | 1.5 mm |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 2, 4, 6 kg
Pre-engineered clean agent system for electrical cabinets, server racks and wind turbine alternator zones, where the UL listed detection tube both senses the fire and delivers the agent at the source. Available in 2, 4 and 6 kg cylinders with FE-36 (HFC-236fa), FK-5-1-12 or FM-200 (HFC-227ea).
Sizes: 2, 4, 6 kg
Indirect clean agent system for CNC and EDM machines, dry type transformers, DG sets, fume hoods and wind turbines: the red detection tubing only senses the fire and large nozzles then flood the work zone with clean agent. Offered in 2, 4 and 6 kg cylinders.
CO2 based direct system for electrical cabinets, transformers, DG sets and fume hoods, with detection tubing routed around the critical components for 360 degree detection and discharge at the source. Cylinder sizes 4.5 and 6.5 kg subject to design calculation.
Sizes: 4.5, 6.5, 9, 22.5, 45 kg
Indirect high pressure CO2 systems for panels, dry type transformers and generators, CNC and EDM machines and fume hoods, where the detection tube senses the fire and nozzles deliver CO2 as a gentle mist. Cylinder sizes from 4.5 kg up to 45 kg depending on the enclosure.
Pre-engineered direct release system using Novec 1230 clean agent for the electrical compartment of a wind turbine, also suitable for cable runs and trays. Cylinders are offered as 2 and 5 kg (CE) or 2.5, 5 and 10 lbs (DOT).
Indirect release Novec 1230 system recommended for wind turbine electrical compartments, where the tubing detects the fire and large nozzles flood the zone with clean agent. Cylinders in 2 and 5 kg (CE) or 2.5, 5 and 10 lbs (DOT).
Automatic watermist suppression system for commercial kitchens, LPCB certified under LPS 1223, protecting the full hood, duct and plenum. It breaks water into mist under 70 microns that cools the area and prevents re-ignition.
Automatic wet chemical suppression system for commercial kitchens, LPCB certified under LPS 1223. The agent forms a foam blanket over burning oil and cools it, and the system protects the hood, duct and plenum.
