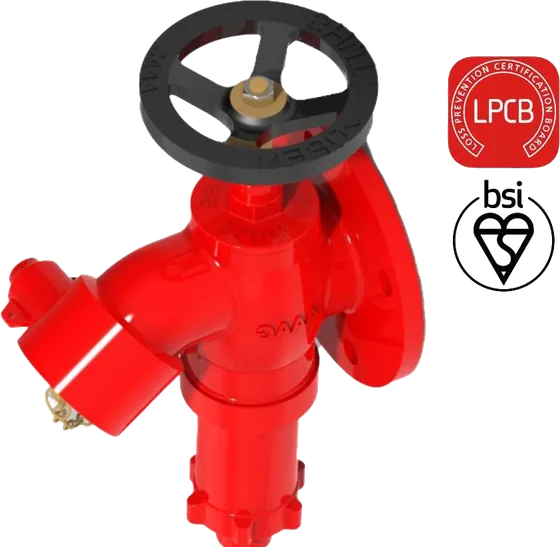

Supplier for AaagA high pressure oblique hydrant valve that regulates the outlet pressure when the inlet pressure is higher than normal, for wet risers and stand posts. Made to BS 5041-1 in bronze and LPCB approved, it handles inlet pressures up to 20 bar.
Standards and approvals: BS 5041-1/ BS:336, LPCB Approved
Sizes: 2½” (65 mm)
| Specification | 2½” (65 mm) |
|---|---|
| Make | AAAG |
| Size | 2½” (65 mm) |
| Inlet | Flanged 2½” NB, BS:10 (ANSI B 16.5 150 # optional) |
| Outlet | 2½” (65 mm) Female Inst. Outlet (other connections possible) |
| Reference Standard | BS 5041-1/ BS:336 |
| Body, Bonnet, Female outlet and parts | Bronze, BS:1400 LG2 |
| Stem | Brass, BS:2874 |
| Pressure Regulating Mechanism | Bronze, BS:1400 LG2 |
| Hand Wheel | Cast Iron, BS:1452/ SG Iron |
| Washers | Natural Rubber |
| Dimensional check | Dimensions as per Drawing (See below) |
| Seat Leakage Test | 22 bar for 2 minutes |
| Valve Body Test | 30 bar for 2 minutes |
| Pressure Regulation Test | Outlet pressure of 4.5 +/- 0.5 bar at varying inlet pressures (12.5, 175, 20.5 bar) with flow of 510 +/- 30 lpm |
| Documentation | Internal inspection report, supplier’s certificates, approved laboratory test certificates |
| Working pressure range | upto 20 bar |
| Outlet pressure | Adjustable from 4 to 9 bars (Factory set pressure: 4.5 bar) |
| Weight (approx.) | 11.5 Kgs. |
| Body | Painted - Fire Red Color |
| Wheel | Painted - Black Paint |
| Parts | Polished |
| Marking on Hydrant valve | AAAG/ Size/ Year of Manufacture/ LPCB Mark/ SI No |
| Warranty & Guarantee | 12 Months from the date of supply |
Specifications as published by Aaag. Please confirm the exact model with us before ordering.
Single outlet oblique landing valve in gunmetal, made to IS 5290 Type A and ISI approved, with a 75 NB flanged inlet and a 63 mm female instantaneous outlet. A stainless steel body is available as an option.
The stainless steel version of Aaag's oblique landing valve, with the body in stainless steel to IS 3444 Gr. I or Gr. IV and a 63 mm female instantaneous outlet. Aaag's heading lists it as IS 5290 Type A while its table reads Type B, so we confirm the type against your specification.
An oblique landing valve made to BS 5041-1, the British standard for hydrant valves, for projects specified to it. Gunmetal body as standard, stainless steel optional, with a 63 mm female instantaneous outlet.
Sizes: 63 mm
An FM approved oblique landing valve to FM Specification 1521, with a gunmetal (red brass) cast body, tested to 50 bar. The 63 mm female instantaneous outlet follows BS 336 and IS 5290.
Sizes: 63 mm
The stainless steel SS 316 version of Aaag's FM approved oblique landing valve, to FM Specification 1521 and tested to 50 bar, with a 63 mm female instantaneous outlet.
An oblique landing valve with a lock shield, for hydrant systems where unauthorised operation must be prevented, built to a BPCL design. Gunmetal as standard, stainless steel optional.
Single outlet landing valve for hydrant mains and wet risers, made to IS 5290 Type A with the ISI mark and supplied with an ABS blank cap and chain. The heavy duty K-901 and the standard K901-E come in gunmetal or stainless steel.
Double outlet landing valve that feeds two hose lines from one hydrant point, with a 100 mm inlet. Made to IS 5290 Type B with the ISI mark, tested to 21 kg/cm2, in gunmetal or stainless steel.
Sizes: 80 mm
Bronze fire hydrant (landing) valve made to IS 5290 Type A, 80 mm with flanged ends and one outlet fitted with an instantaneous coupling for the hose.
Sizes: 80 mm
SS 304 stainless steel landing valve designed with reference to IS 5290 Type A, 80 mm with flanged ends and a single instantaneous outlet for the fire hose.
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.
Sizes: 2 ½”
ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.
