New Age Double Headed Hydrant Valve, Gunmetal, ISI Marked
Sizes: 2 ½”
ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.

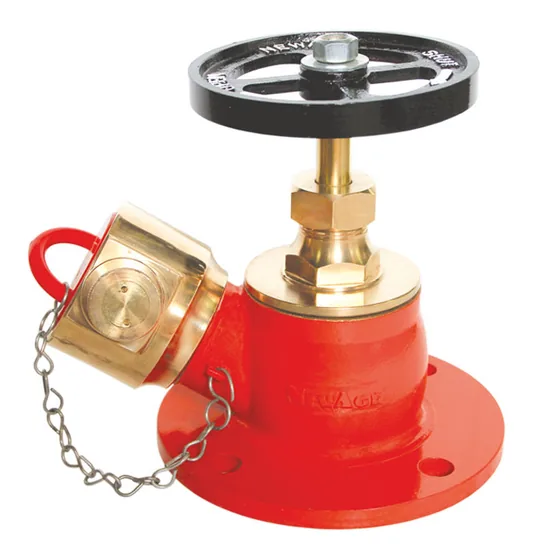

Supplier for New AgeNew Age Oblique Landing Valve, Gunmetal, Flanged, ISI Marked
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.
- ISI marked, made to IS 5290
- Generally conforms to BS 5041 Part 1
- Gunmetal, 3 inch flanged inlet, 2½ inch female instantaneous outlet
- Body and internals tested at 300 psi (21 kg/cm²)
- Compact design with good flow
Standards and approvals: ISI Marked, IS:5290-1993, BS:5041 Part 1
Sizes: 2 ½”
Specifications
Specifications
| Specification | 2 ½” NFF-HV-OF-GM | 2 ½” NFF-HV-OF-SS | 2 ½” NFF-HV-OF-AL |
|---|---|---|---|
| Item Code | NFF-HV-OF-GM | NFF-HV-OF-SS | NFF-HV-OF-AL |
| Size | 2 ½” | 2 ½” | 2 ½” |
| Inlet | 3” Flanged | 3” Flanged | 3” Flanged |
| Outlet | 2½” Female Instantaneous | 2½” Female Instantaneous | 2½” Female Instantaneous |
| Test Pressure | 300 PSI | 300 PSI | 300 PSI |
| Material of Construction | Gunmetal | Stainless Steel | Aluminum Alloy |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
