New Age Oblique Landing Valve, Gunmetal, Flanged, ISI Marked
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.

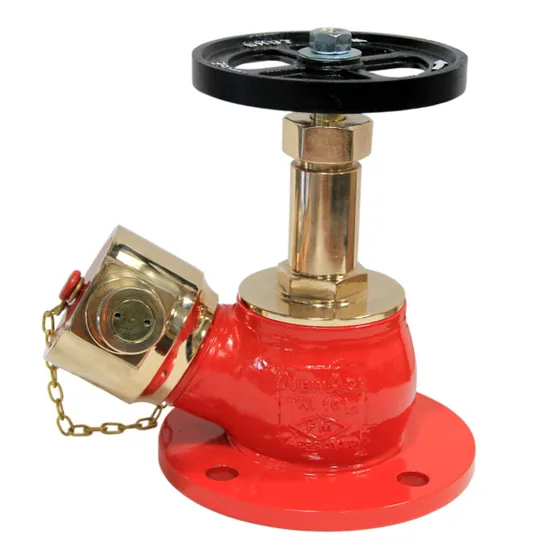

Supplier for New AgeNew Age Oblique Landing Valve, Flanged, FM Approved
FM Approved oblique landing valve for wet riser systems in high pressure fire fighting, 2½ inch with a 3 inch flanged inlet and a 700 psi test pressure.
- FM Approved
- Gunmetal, with stainless steel also listed
- 3 inch flanged inlet
- Outlet: 2½ inch female instantaneous, or NH, NST or BSP male thread
- Test pressure 700 psi
Standards and approvals: FM Approved
Sizes: 2 ½”
Specifications
Specifications
| Specification | 2 ½” |
|---|---|
| Model No: | NI 101 |
| Size | 2 ½” |
| Inlet | 3” Flanged |
| Outlet | 2½” Female Instantaneous / NH (M) / NST(M) / BSP(M) Threaded |
| Test Pressure | 700 PSI |
| Material of Construction | Gunmetal, Stainless Steel |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
