New Age Oblique Landing Valve, Gunmetal, Flanged, ISI Marked
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.

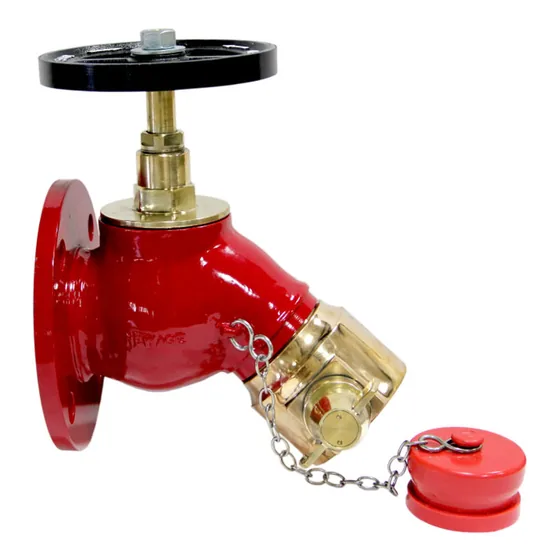

Supplier for New AgeNew Age Bib Nose Landing Valve, Flanged, FM Approved
FM Approved gunmetal bib nose type hydrant valve, 2½ inch with a 3 inch flanged inlet, for marine and on shore use.
- FM Approved
- Gunmetal, 3 inch flanged inlet
- Outlet: 2½ inch female instantaneous, or NH, NST or BSP male thread
- Seat tightness test at 16 bar; test pressure 300 psi
- Flow test 900 LPM at 7 bar
- For marine and on shore applications
Standards and approvals: FM Approved
Sizes: 2 ½”
Specifications
Specifications
| Specification | 2 ½” |
|---|---|
| Model No: | NFF-109 |
| Size | 2 ½” |
| Inlet | 3” Flanged |
| Outlet | 2½” Female Instantaneous / NH (M) / NST(M) / BSP(M) Threaded |
| Test Pressure | 300 PSI |
| Material of Construction | Gunmetal |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
