Landing valves, also called hydrant valves, are the hose outlets on a fire hydrant main, wet riser or downcomer, where a fire hose is connected and the water is opened. Fire Protection System supplies landing valves, pressure regulating hydrant valves, stand posts and underground hydrants from Kartar Valves, Zoloto, New Age, Minimax, Savemax, Aaag and Balaji Fire Safety in Bhopal and across Madhya Pradesh.
Single outlet landing valve for hydrant mains and wet risers, made to IS 5290 Type A with the ISI mark and supplied with an ABS blank cap and chain. The heavy duty K-901 and the standard K901-E come in gunmetal or stainless steel.

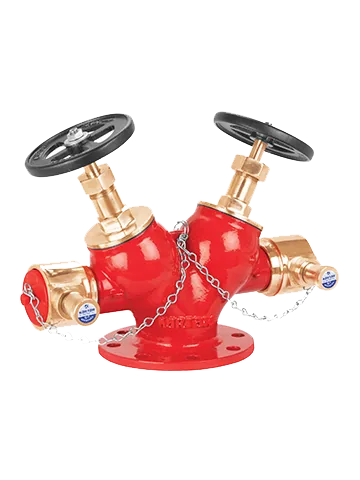

Double outlet landing valve that feeds two hose lines from one hydrant point, with a 100 mm inlet. Made to IS 5290 Type B with the ISI mark, tested to 21 kg/cm2, in gunmetal or stainless steel.
A complete cast iron underground fire hydrant set to IS 909 Fig. 1A, 80 mm, supplied with sluice valve, duck foot bend, riser, coupling with cap, chain, nuts, bolts and rubber packing.
A cast iron fire hydrant made to IS 909 Fig. 1B, supplied with a CI coupling.
A cast iron fire hydrant made to BS 750 Type 2, for projects specified to the British standard, supplied with a CI coupling.
A cast iron single outlet stand post of the MCGM type, supplied with a CI coupling. Kartar makes it to order, so height and connection details are confirmed when you enquire.

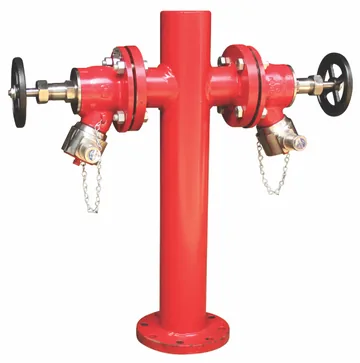

A fabricated mild steel (MS) stand post that carries two landing valves, with a 100 mm inlet and 80 mm outlets. It is supplied without the landing valves, either without (K919) or with (K919 C) the nuts, bolts and gaskets for all three flanges.
Replacement parts for Kartar landing valves: bonnet assembly, bonnet, spindle system and spindle rod, lug bush assembly, ductile iron hand wheel, PVC cap and chain, rubber seals and washer, and the new design valve seat.
Sizes: 80 mm
Bronze fire hydrant (landing) valve made to IS 5290 Type A, 80 mm with flanged ends and one outlet fitted with an instantaneous coupling for the hose.
Sizes: 80 mm
SS 304 stainless steel landing valve designed with reference to IS 5290 Type A, 80 mm with flanged ends and a single instantaneous outlet for the fire hose.
Sizes: 2 ½”

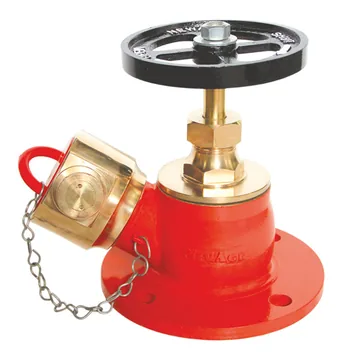

ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.
Sizes: 2 ½”

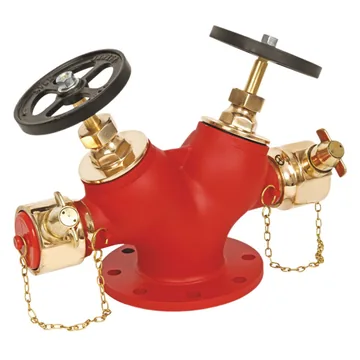

ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.
Sizes: 2 ½”

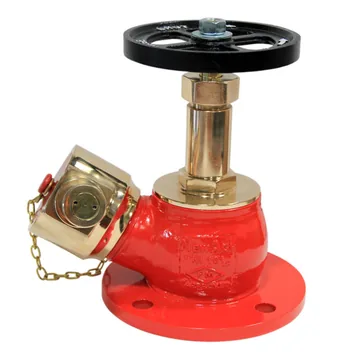

FM Approved oblique landing valve for wet riser systems in high pressure fire fighting, 2½ inch with a 3 inch flanged inlet and a 700 psi test pressure.
Sizes: 2 ½

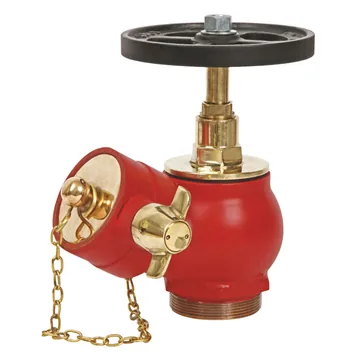

Threaded inlet version of New Age's FM Approved gunmetal oblique landing valve, 2½ inch with a BSPT male inlet, for wet riser systems.
Sizes: 2 ½”

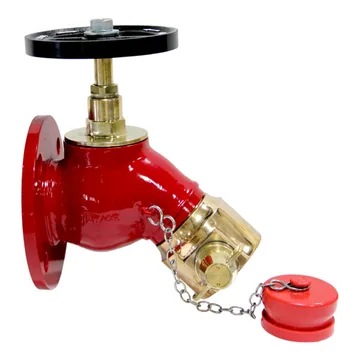

FM Approved gunmetal bib nose type hydrant valve, 2½ inch with a 3 inch flanged inlet, for marine and on shore use.
Sizes: 2 ½”

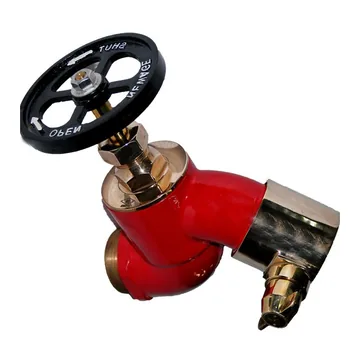

FM Approved gunmetal bib nose type hydrant valve with a 2½ inch BSP male threaded inlet, for marine and on shore use.
Sizes: 65mm / 38mm

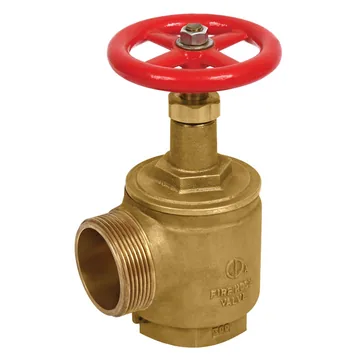

UL Listed brass angle hose valve, offered in 38 mm and 65 mm sizes.
Sizes: 2 ½”, 63mm

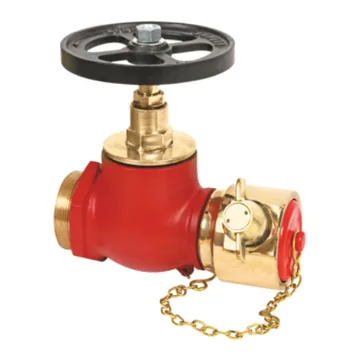

Straight pattern gunmetal landing valve, 63 mm (2½ inch), with a 3 inch flanged inlet and a plug and chain, for on shore and off shore use.
Sizes: 2 ½”

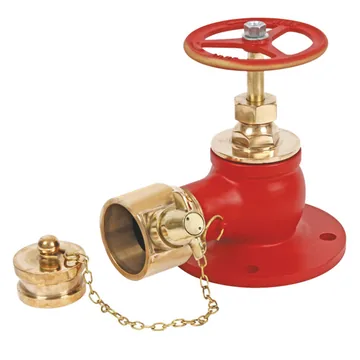

Gunmetal right angled landing valve, 2½ inch with a 3 inch flanged inlet and a plug and chain, for on shore and off shore use.
Sizes: 2 ½”, 63mm

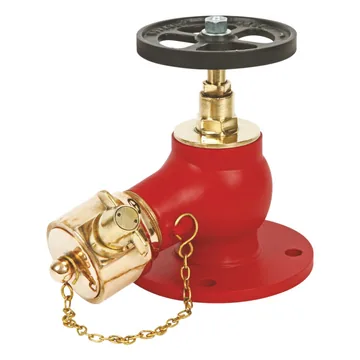

Gunmetal turn down landing valve, 63 mm (2½ inch), with a 3 inch flanged inlet and a plug and chain, for on shore and off shore use.
Sizes: 63mm

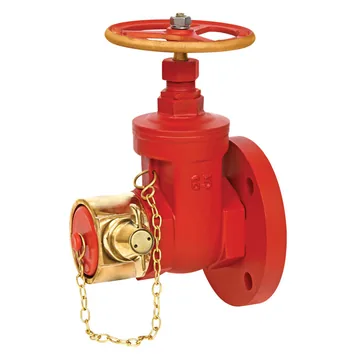

Gunmetal hydrant valve in gate pattern, 63 mm, supplied with a plug and chain, for on shore and off shore use.

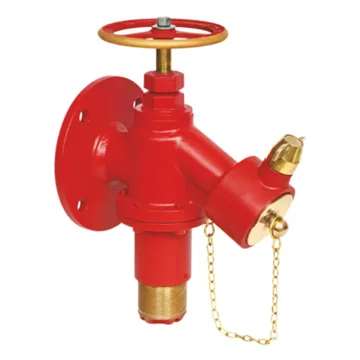

Combined hydrant valve and pressure control device to BS 5041, with a spring loaded balanced mechanism that holds a steady outlet pressure without cutting the flow. For high rise buildings, high pressure lines and long water mains.
Pressure regulating hydrant valve that keeps a uniform fire fighting pressure at each hydrant, wherever it sits in the system, and can be adjusted in place for each floor.

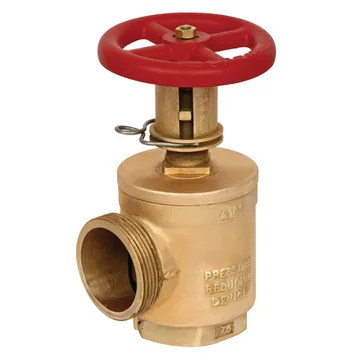

Landing valve with a stop built into the stem and bonnet that limits how far it opens, lowering the pressure while water flows. It does not change static pressure; sizes 1.5 inch and 2.5 inch.

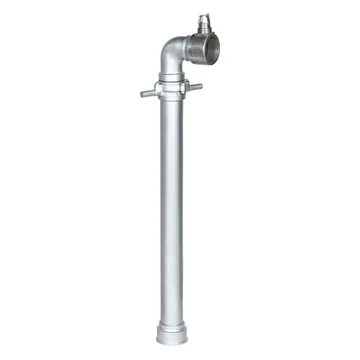

Aluminium standpipe that fits onto an underground hydrant, with a threaded BSRT or female instantaneous inlet and a female instantaneous outlet to BS 336.

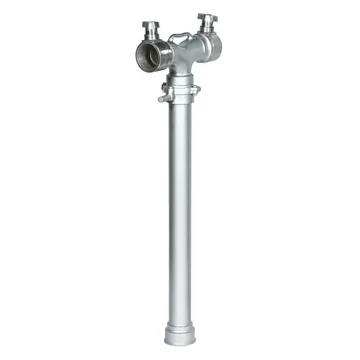

Two outlet aluminium standpipe for underground hydrants, with a threaded BSRT or female instantaneous inlet and female instantaneous outlets to BS 336.

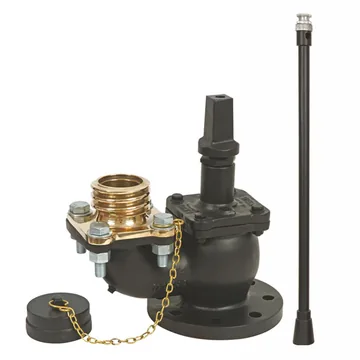

Grey cast iron underground hydrant with a flanged inlet and a gunmetal threaded outlet, rated for a 150 psi working pressure.

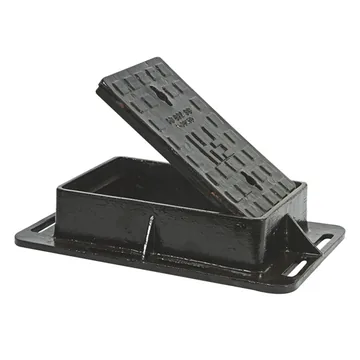

Cast iron surface box, 15 by 9 by 5 inch, that covers the access to an underground hydrant at ground level.

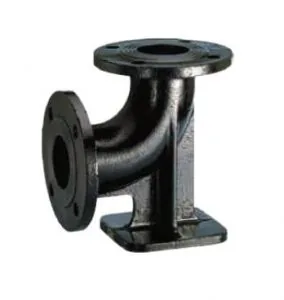

Grey cast iron duck foot bend with a body to BS 1452 and 4 inch flanges to BS Table 10 E at inlet and outlet.

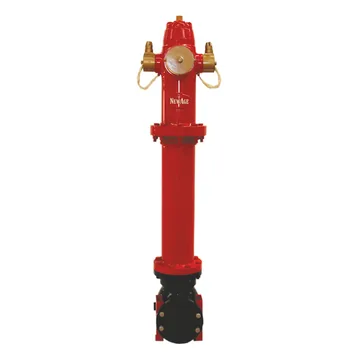

Cast iron dry barrel pillar hydrant in 4 inch size, opened with a hydrant wrench on the top mechanism, with two 2½ inch gunmetal instantaneous outlets and a 4 inch pumper connection.

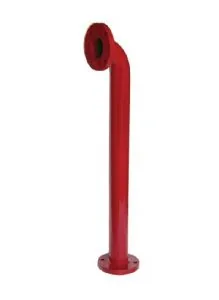

Carbon steel single outlet hydrant standpost with a 3 inch flanged inlet and one 2½ inch flanged outlet.

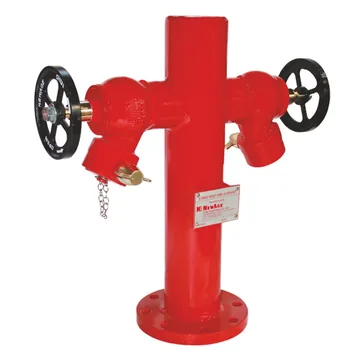

Carbon steel hydrant standpost with a 4 inch flanged inlet and two 3 inch flanged outlets, with an optional 4 inch flanged outlet for a monitor.
Carbon steel or cast iron four way standpost with a 6 inch flanged inlet and four 2.5 inch flanged outlets.

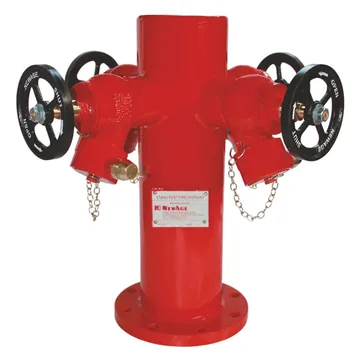

Cross arm four way standpost in carbon steel or cast iron, with a 6 inch flanged inlet, four 2.5 inch threaded or flanged outlets and optional landing valves with BS 336 instantaneous outlets.
Single headed oblique hydrant valve with an 80 mm flat faced flanged inlet and a 63 mm female instantaneous outlet, made to IS:5290-1993 Type A and ISI marked. It is flow tested at 900 LPM at 7 kg/cm2.

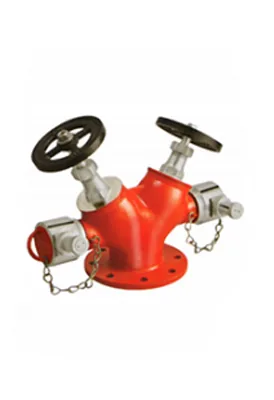

Double headed oblique hydrant valve with a 100 mm flat faced flanged inlet and 63 mm female instantaneous outlets, made to IS:5290-1993 Type B and ISI marked. It is flow tested at 1800 LPM at 7 kg/cm2.

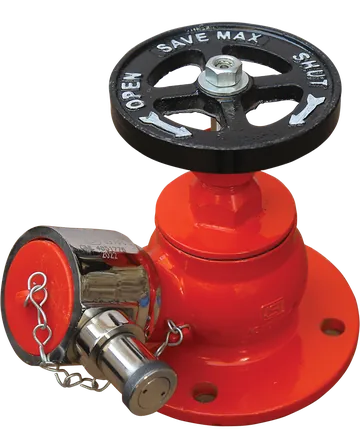

A single outlet landing valve in stainless steel, the standard choice for most wet riser systems. It is installed at each floor landing with a 63 mm outlet for connecting the fire hose.

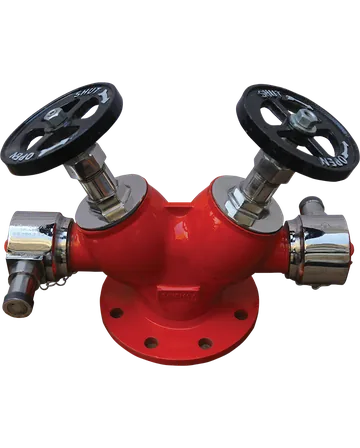

A dual outlet stainless steel landing valve for floor landings where two hose lines may have to run at the same time. It is typically specified for high risk occupancies, large floor plates and basements.
Single outlet oblique landing valve in gunmetal, made to IS 5290 Type A and ISI approved, with a 75 NB flanged inlet and a 63 mm female instantaneous outlet. A stainless steel body is available as an option.
The stainless steel version of Aaag's oblique landing valve, with the body in stainless steel to IS 3444 Gr. I or Gr. IV and a 63 mm female instantaneous outlet. Aaag's heading lists it as IS 5290 Type A while its table reads Type B, so we confirm the type against your specification.
An oblique landing valve made to BS 5041-1, the British standard for hydrant valves, for projects specified to it. Gunmetal body as standard, stainless steel optional, with a 63 mm female instantaneous outlet.
Sizes: 63 mm
An FM approved oblique landing valve to FM Specification 1521, with a gunmetal (red brass) cast body, tested to 50 bar. The 63 mm female instantaneous outlet follows BS 336 and IS 5290.
Sizes: 63 mm
The stainless steel SS 316 version of Aaag's FM approved oblique landing valve, to FM Specification 1521 and tested to 50 bar, with a 63 mm female instantaneous outlet.
An oblique landing valve with a lock shield, for hydrant systems where unauthorised operation must be prevented, built to a BPCL design. Gunmetal as standard, stainless steel optional.
An oblique landing valve with a female BSP threaded inlet in place of a flange, for threaded pipework. Gunmetal as standard, stainless steel optional, with a 63 mm female instantaneous outlet.
An oblique landing valve with a male BSP threaded inlet, listed to BS 336, for threaded pipework. Gunmetal as standard, stainless steel optional.
A right angle landing valve for internal and external hydrant points, with a 75 NB flanged inlet and a 63 mm female instantaneous outlet. Gunmetal as standard, stainless steel optional.
A horizontal pattern landing valve with a 75 NB flanged inlet and a 63 mm female instantaneous outlet, in gunmetal with stainless steel as an option.
A landing valve with a downward facing outlet, with a 75 NB flanged inlet and a 63 mm female instantaneous outlet, in gunmetal with stainless steel as an option.
A hand wheel operated hydrant valve with a female BSP threaded inlet and a 63 mm female instantaneous outlet, in gunmetal with stainless steel as an option.
A double outlet landing valve that serves two hose lines from one hydrant point, with a 100 NB flanged inlet. Gunmetal body, with stainless steel as an option.
A stainless steel double outlet landing valve made to IS 5290 Type B, feeding two hose lines from one hydrant point through a 100 NB flanged inlet.
Sizes: 2½” (65 mm)
A low pressure oblique hydrant valve for wet risers, made to BS 5041-1 and LPCB approved, in bronze with a 65 mm flanged inlet and a 65 mm female instantaneous outlet. Supplied with blank cap and chain.
Sizes: 2½” (65 mm)
A low pressure oblique hydrant valve for wet risers, made to BS 5041-1, in bronze with a 65 mm male BSP threaded inlet and a 65 mm female instantaneous outlet. Supplied with blank cap and chain.
Sizes: 2½” (65 mm)
A high pressure oblique hydrant valve that regulates the outlet pressure when the inlet pressure is higher than normal, for wet risers and stand posts. Made to BS 5041-1 in bronze and LPCB approved, it handles inlet pressures up to 20 bar.
Sizes: 3” (80 mm): Flanged
A high pressure oblique hydrant valve in SS 304 that regulates the outlet pressure for wet risers and stand posts, with an 80 mm flanged inlet and a 63 mm female instantaneous outlet. Aaag lists no reference standard for this model.
A key for opening underground hydrants so that water can be drawn from a pressurised main. Mild steel with black polyurethane paint, or aluminium as model M 200B.
An aluminium standpipe that screws onto an underground hydrant to draw water from the main, with a 63 mm female BS round threaded inlet and one 63 mm female instantaneous outlet.
An aluminium standpipe for underground hydrants with two 63 mm female instantaneous outlets, so two hose lines can be run from one hydrant.
A hydrant that works like an outdoor hydrant but is installed below ground under a manhole cover, which suits places such as airports where outdoor hydrants are hard to install. Cast iron body to IS 210 with a gunmetal outlet.
An above ground hydrant for use outside buildings when more water is needed than the internal system gives, with all mechanical parts above ground and easy to reach. Heavy duty mild steel body with one flanged outlet for an Aaag hydrant valve.
An above ground outdoor hydrant with two flanged outlets for Aaag hydrant valves, built in heavy duty mild steel with a 100 NB inlet.
The double outlet wet hydrant with an added 100 NB pumper connection, a male round threaded outlet with blank cap, alongside two flanged outlets for Aaag hydrant valves.
Sizes: 5 inch to 145 pcd flange

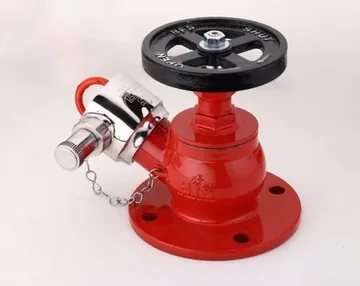

A single outlet hydrant valve in stainless steel (SS 202 or SS 304) with a 63 mm outlet and hand wheel, for wet risers and hydrant systems. Some listings name IS 5290; a few rows under these names show a cast iron body, so we confirm the build before supply.
Sizes: 63 mm STANDARD, 63 MM STANDRAD, 63 MM

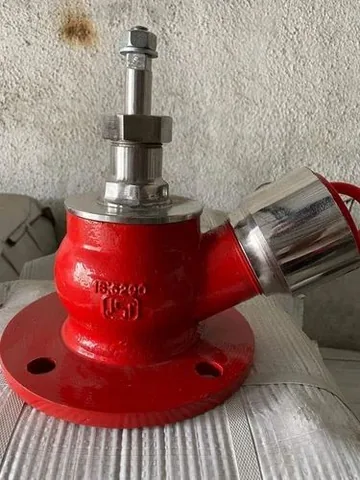

A single outlet landing valve with a cast iron body and stainless steel working parts, an 80 mm flanged inlet and a 63 mm outlet. Two listings name IS 5290, and one is listed as BIS approved.
Sizes: 4.5 inch

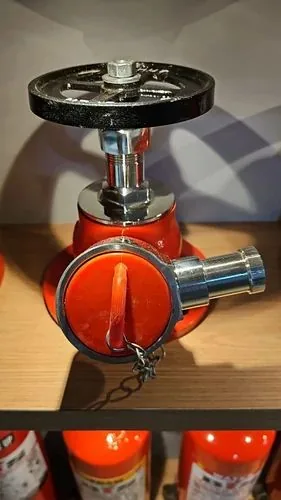

A gunmetal single headed hydrant valve in Balaji's commercial heavy range, which Balaji positions for heavy manufacturing units and industrial sites.
Sizes: 6 inch, 63 MM, 85 MM

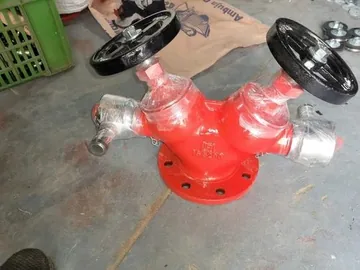

A double outlet landing valve with a cast iron body and an 80 mm flanged inlet, feeding two hose lines through 63 mm female instantaneous outlets with lugs. It follows the IS 5290 Type B design, and one listing is ISI marked to IS 5290.

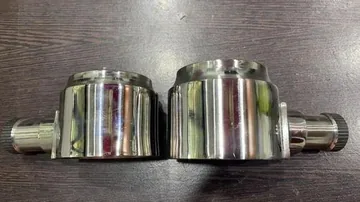

A round 63 mm stainless steel adapter for landing valves, listed by Balaji as a fire hydrant accessory.
Sizes: 80 mm
A single headed landing valve with a cast iron body, an ABS blank cap and chain, and parts in SS or GM. Size 80 mm.
Start with the number of outlets. A single headed valve feeds one hose line and suits most floor landings on wet risers and downcomers and most yard hydrants. A double headed valve feeds two hose lines from one point and is chosen where two jets may be needed together, such as large floor plates, basements and high risk occupancies. Minimax flow tests its single headed Type A valve at 900 LPM and its double headed Type B valve at 1800 LPM, both at 7 kg/cm2. Most models here are oblique pattern, and New Age and Aaag also offer right angle, horizontal, downward or turn down, straight, bib nose and gate pattern valves for cabinets and shafts where the hose has to leave the valve in a particular direction.
Next match the connections. Most single headed valves have a 3 inch flanged inlet, listed as 75 NB by Aaag, 80 mm by Kartar Valves, Zoloto and Minimax and 3 inch by New Age, while the double headed valves from Kartar Valves, New Age, Minimax and Aaag take a 100 mm (4 inch) inlet, so the valve must suit the branch on your riser or hydrant main. The hose outlet is a 63 mm (2.5 inch) female instantaneous coupling on most models, Kartar's website gives 65 mm, and New Age can also supply NH, NST or BSP male threaded outlets, so check the outlet against the couplings on your hoses. New Age and Aaag also offer BSP threaded inlet versions for threaded pipework.
Then choose the body material and the standard your project specifies. Gunmetal or bronze bodies are offered by most makers here, stainless steel (SS 202 or SS 304 from Balaji Fire Safety, SS 304 from Zoloto, SS 316 on Aaag's FM Approved valve) suits sites that need corrosion resistance, and Kartar Valves and Balaji Fire Safety also offer cast iron bodies with stainless steel or gunmetal working parts. Valves made to IS 5290 with the ISI mark are listed by Kartar Valves, New Age, Minimax, Savemax and Aaag, Savemax also lists CPWD approval, and Zoloto designs its bronze and SS 304 valves to IS 5290 Type A. Where a project calls for other approvals, New Age and Aaag offer FM Approved valves, Aaag offers BS 5041-1 wet riser valves, some LPCB approved, and New Age a UL Listed brass angle hose valve in 38 mm and 65 mm.
On tall buildings the lower floors see far higher pressure than the top, which can make a hose hard to handle. Pressure reducing or regulating landing valves hold a steadier outlet pressure: Aaag's bronze valve to BS 5041-1 is LPCB approved and handles inlet pressures up to 20 bar, Aaag also makes an SS 304 regulating valve with an 80 mm flanged inlet, New Age's Class F valve to BS 5041 and its bib nose regulating valve can be adjusted on site for each floor, and New Age's pressure restricting valve limits how far the valve opens. FPS installs, pressure tests and maintains hydrant valves across Madhya Pradesh.
