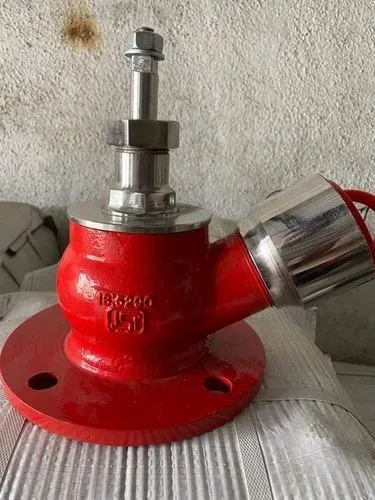

Dealer for Balaji Fire SafetyA single outlet landing valve with a cast iron body and stainless steel working parts, an 80 mm flanged inlet and a 63 mm outlet. Two listings name IS 5290, and one is listed as BIS approved.
Standards and approvals: IS 5290, BIS Approved
Sizes: 63 mm STANDARD, 63 MM STANDRAD, 63 MM
| Size / item | Model | Pressure (service / max / test) |
|---|---|---|
| 63 mm STANDARD | 10 kg/cm2 | |
| 63 MM STANDRAD | ||
| 63 MM | ||
| BFS Fire Hydrant Landing Valve | ||
| Fire Hydrant Valve | 10 kg/cm2 | |
| Fire Hydrant Valve | ||
| Stainless Steel Landing Valve | ||
| 93 | ||
| Stainless Steel Hydrant Valve | ||
| Single Hydrant Valve |
| Specification | 63 mm STANDARD | 63 MM STANDRAD | 63 MM | Details | Details | Details | Details | 93 | Details | Details |
|---|---|---|---|---|---|---|---|---|---|---|
| Outlet Size | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | ||||
| Valve Size | 63 mm STANDARD | 63 MM | 63 MM | |||||||
| Inlet Size | 80 mm | 80 mm | 63 mm | 80 mm | ||||||
| Body Material | Cast Iron | Stainless Steel | Cast Iron | Cast Iron | Cast Iron | Cast Iron | Cast Iron | Cast Iron | ||
| Valve Type | Single Outlet | Landing Valve | single head | Single Outlet | Single Outlet | Landing Valve | Landing Valve | |||
| Connection Type | Flanged | Flanged | Flanged | Flanged | Flanged | Flanged | Flanged | |||
| Automation Grade | Manual | Manual | Manual | |||||||
| Material | CI BODY + SS WORKING PARTS | Stainless Steel | SS 202 | Cast Iron | ||||||
| End Connection Type | FLANGE | |||||||||
| Number of Head | ONE | One | ||||||||
| Standard | IS 5290 | IS 5290 | ||||||||
| Seat Material | Rubber | Rubber | ||||||||
| Application | FIRE FIGHTING | Industrial & Hospitality | ||||||||
| Coating | Powder Coated | Powder Coated | ||||||||
| MAKE | BALAJI | BFS | BFS | |||||||
| Size | 63 MM STANDRAD | |||||||||
| Design Type | Single Headed | Single Headed | ||||||||
| Type | FIRE HYDRANT VALVE | Fire Hydrants | ||||||||
| Usage/Application | Fire Hydrant System, Industrial Safety, Commercial Buildings, Hospitals, Warehouses, Residential Fir | Fire Safety | Fire Hydrant System | Commercial | Fire Hydrant System, Industrial Safety, Commercial Buildings, Hospitals, Warehouses, Residential Fire | |||||
| Country of Origin | Made in India | Made in India | Made in India | |||||||
| Pressure Rating | PN10 | 7 kg/cm2 | 10 kg/cm2 | PN10 | 7 kg/cm2 | |||||
| Operation | Handwheel | Handwheel | ||||||||
| Handwheel Material | Cast Iron | |||||||||
| SS Grade | SS202 | |||||||||
| Color | Red | |||||||||
| Number Of Ways | One | |||||||||
| Item Code | 93 | |||||||||
| Brand | BFS | |||||||||
| Certification | BIS Approved |
Specifications as published by Balaji Fire Safety. Please confirm the exact model with us before ordering.
Sizes: 5 inch to 145 pcd flange
A single outlet hydrant valve in stainless steel (SS 202 or SS 304) with a 63 mm outlet and hand wheel, for wet risers and hydrant systems. Some listings name IS 5290; a few rows under these names show a cast iron body, so we confirm the build before supply.
Sizes: 4.5 inch
A gunmetal single headed hydrant valve in Balaji's commercial heavy range, which Balaji positions for heavy manufacturing units and industrial sites.
Sizes: 6 inch, 63 MM, 85 MM
A double outlet landing valve with a cast iron body and an 80 mm flanged inlet, feeding two hose lines through 63 mm female instantaneous outlets with lugs. It follows the IS 5290 Type B design, and one listing is ISI marked to IS 5290.
A round 63 mm stainless steel adapter for landing valves, listed by Balaji as a fire hydrant accessory.
Single outlet landing valve for hydrant mains and wet risers, made to IS 5290 Type A with the ISI mark and supplied with an ABS blank cap and chain. The heavy duty K-901 and the standard K901-E come in gunmetal or stainless steel.
Double outlet landing valve that feeds two hose lines from one hydrant point, with a 100 mm inlet. Made to IS 5290 Type B with the ISI mark, tested to 21 kg/cm2, in gunmetal or stainless steel.
Sizes: 80 mm
Bronze fire hydrant (landing) valve made to IS 5290 Type A, 80 mm with flanged ends and one outlet fitted with an instantaneous coupling for the hose.
Sizes: 80 mm
SS 304 stainless steel landing valve designed with reference to IS 5290 Type A, 80 mm with flanged ends and a single instantaneous outlet for the fire hose.
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.
Sizes: 2 ½”
ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.
