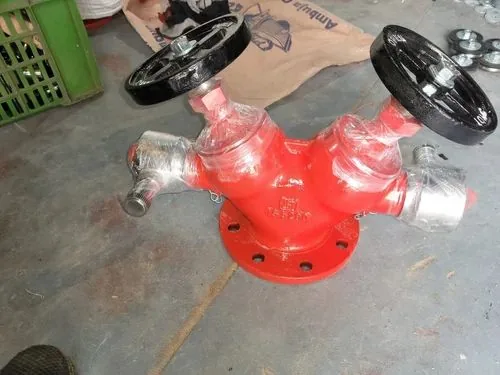

Dealer for Balaji Fire SafetyA double outlet landing valve with a cast iron body and an 80 mm flanged inlet, feeding two hose lines through 63 mm female instantaneous outlets with lugs. It follows the IS 5290 Type B design, and one listing is ISI marked to IS 5290.
Standards and approvals: ISI Marked as per IS: 5290, IS 5290
Sizes: 6 inch, 63 MM, 85 MM
| Specification | 6 inch | 63 MM | 85 MM | Details | Details | Details |
|---|---|---|---|---|---|---|
| Material | Gunmetal | Cast Iron | ||||
| Valve Size | 6 inch | |||||
| Outlet Size | 63 mm | 63 mm | 63 MM | 63 mm | 63 mm | |
| Body Material | Cast Iron | Cast Iron | Cast Iron | Cast Iron | Cast Iron (CI): Durable and corrosion-resistant | Cast Iron |
| Usage/Application | Fire Fighting | FIRE FIGHTING | FIRE FIGHTING | |||
| Automation Grade | Manual | |||||
| Number Of Head | 2 | 2 | ||||
| Item Code | 67 | 96 | 74 | |||
| Inlet Size | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | |
| Outlet Type | Double Outlet | Double Outlet | OUTLET OF 63 MM FEMALE INSTANTENEOUS COUPLING WITH LUGS | Double Outlet | Double Outlet | |
| Connection Type | Flanged | Flanged | DOUBLE HEAD | Flanged | Flanged | |
| Pressure Rating | 7 kg/cm2 | 7 kg/cm2 | 7 kg/cm2 | 10 kg/cm2 | 10 kg/cm2 | |
| Standard | IS 5290 | IS 5290 | ISI Marked as per IS: 5290 | |||
| Seat Material | Rubber | |||||
| Handwheel Material | Cast Iron | Cast Iron | Cast Iron | |||
| Coating | Red Paint | Powder Coated | ||||
| MAKE | BFS | BFS | ||||
| CASTING | INVESTMANET | INVESTMENT | ||||
| GRADE | STAINLESS STEEL | |||||
| Size | 63 MM | 85 MM | ||||
| Country of Origin | Made in India | Made in India | Made in India | |||
| Flow Rate | 900 LPM to 1800 LPM | 1800 LPM AT 7 KG/CM2 | ||||
| Hydraulic Test Pressure | Body Test Pressure: 21 kg/cm² (21 Bar) Seat Test Pressure: 14 kg/cm² (14 Bar) | 21KGF/SQ.CM FOR 150 SEC | ||||
| Pressure | High Pressure | |||||
| Valve Type | DOUBLE HEAD | |||||
| Flanged | 180 MM | |||||
| Flow Test | 1800 LPM AT 7 KG/CM2 | |||||
| Is It ISI Certified | Non ISI Certified | |||||
| Head Type | DOUBLE HEAD | |||||
| Design Type | IS:5290 - 1993 TYPE - B | |||||
| Weight | 17 KG | |||||
| Steel Grade | ISI | |||||
| Number Of Ways | TWO | |||||
| Number Of Valve | DOUBLE HEAD | |||||
| Number Of Bolt | 2 | |||||
| Make | BFS | |||||
| Working Parts | Stainless Steel (SS): Ensures longevity and smooth operation |
Specifications as published by Balaji Fire Safety. Please confirm the exact model with us before ordering.
Sizes: 5 inch to 145 pcd flange
A single outlet hydrant valve in stainless steel (SS 202 or SS 304) with a 63 mm outlet and hand wheel, for wet risers and hydrant systems. Some listings name IS 5290; a few rows under these names show a cast iron body, so we confirm the build before supply.
Sizes: 63 mm STANDARD, 63 MM STANDRAD, 63 MM
A single outlet landing valve with a cast iron body and stainless steel working parts, an 80 mm flanged inlet and a 63 mm outlet. Two listings name IS 5290, and one is listed as BIS approved.
Sizes: 4.5 inch
A gunmetal single headed hydrant valve in Balaji's commercial heavy range, which Balaji positions for heavy manufacturing units and industrial sites.
A round 63 mm stainless steel adapter for landing valves, listed by Balaji as a fire hydrant accessory.
Single outlet landing valve for hydrant mains and wet risers, made to IS 5290 Type A with the ISI mark and supplied with an ABS blank cap and chain. The heavy duty K-901 and the standard K901-E come in gunmetal or stainless steel.
Double outlet landing valve that feeds two hose lines from one hydrant point, with a 100 mm inlet. Made to IS 5290 Type B with the ISI mark, tested to 21 kg/cm2, in gunmetal or stainless steel.
Sizes: 80 mm
Bronze fire hydrant (landing) valve made to IS 5290 Type A, 80 mm with flanged ends and one outlet fitted with an instantaneous coupling for the hose.
Sizes: 80 mm
SS 304 stainless steel landing valve designed with reference to IS 5290 Type A, 80 mm with flanged ends and a single instantaneous outlet for the fire hose.
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.
Sizes: 2 ½”
ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.
