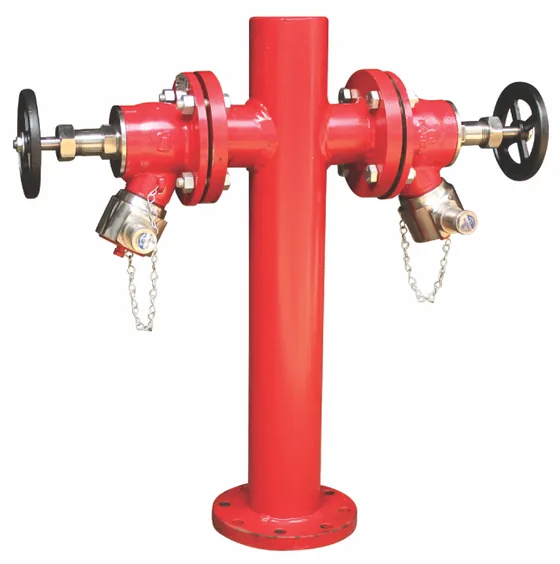

Authorised distributor for Kartar ValvesA fabricated mild steel (MS) stand post that carries two landing valves, with a 100 mm inlet and 80 mm outlets. It is supplied without the landing valves, either without (K919) or with (K919 C) the nuts, bolts and gaskets for all three flanges.
| Specification | K919 | K919 C |
|---|---|---|
| Item Description | KARTAR MS Fabricated Stand Post for two Landing Valves (Inlet 100 mm and outlets 80 mm) | KARTAR MS Fabricated Stand Post for two Landing Valves (Inlet 100 mm and outlets 80 mm) |
| Variant | (without nut, bolts & gasket) | (With nut, bolts & gasket for all 3 flanges) |
| Note | *Stand Post is supplied without Landing Valves. | *Stand Post is supplied without Landing Valves. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
Single outlet landing valve for hydrant mains and wet risers, made to IS 5290 Type A with the ISI mark and supplied with an ABS blank cap and chain. The heavy duty K-901 and the standard K901-E come in gunmetal or stainless steel.
Double outlet landing valve that feeds two hose lines from one hydrant point, with a 100 mm inlet. Made to IS 5290 Type B with the ISI mark, tested to 21 kg/cm2, in gunmetal or stainless steel.
Sizes: 80 mm
A single headed landing valve with a cast iron body, an ABS blank cap and chain, and parts in SS or GM. Size 80 mm.
A complete cast iron underground fire hydrant set to IS 909 Fig. 1A, 80 mm, supplied with sluice valve, duck foot bend, riser, coupling with cap, chain, nuts, bolts and rubber packing.
A cast iron fire hydrant made to IS 909 Fig. 1B, supplied with a CI coupling.
A cast iron fire hydrant made to BS 750 Type 2, for projects specified to the British standard, supplied with a CI coupling.
Sizes: 80 mm
Bronze fire hydrant (landing) valve made to IS 5290 Type A, 80 mm with flanged ends and one outlet fitted with an instantaneous coupling for the hose.
Sizes: 80 mm
SS 304 stainless steel landing valve designed with reference to IS 5290 Type A, 80 mm with flanged ends and a single instantaneous outlet for the fire hose.
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.
Sizes: 2 ½”
ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.
Single headed oblique hydrant valve with an 80 mm flat faced flanged inlet and a 63 mm female instantaneous outlet, made to IS:5290-1993 Type A and ISI marked. It is flow tested at 900 LPM at 7 kg/cm2.
Double headed oblique hydrant valve with a 100 mm flat faced flanged inlet and 63 mm female instantaneous outlets, made to IS:5290-1993 Type B and ISI marked. It is flow tested at 1800 LPM at 7 kg/cm2.
