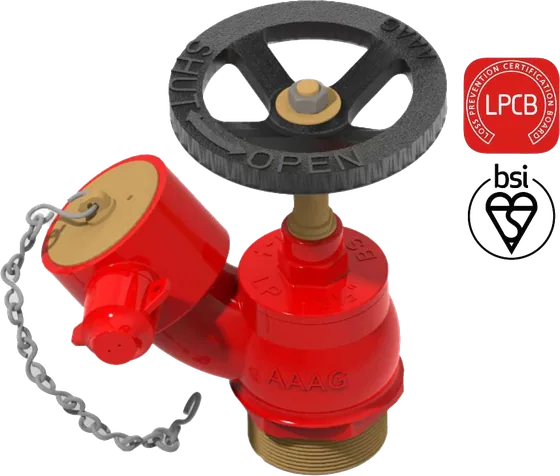

Supplier for AaagA low pressure oblique hydrant valve for wet risers, made to BS 5041-1, in bronze with a 65 mm male BSP threaded inlet and a 65 mm female instantaneous outlet. Supplied with blank cap and chain.
Standards and approvals: BS:5041/BS:336
Sizes: 2½” (65 mm)
| Specification | 2½” (65 mm) |
|---|---|
| Make | AAAG |
| Size | 2½” (65 mm) |
| Inlet | Threaded - G 2½ MBSP Thread (BS EN 10226) |
| Outlet | 2½” (65 mm) Female Inst. Adaptor |
| Reference Standard | BS:5041/BS:336 |
| Body, Bonnet, Female outlet & parts | Bronze BS:1400 LG2 |
| Spindle | Brass BS:2874 |
| Spring | Phosphor Bronze Wire |
| Hand Wheel | Cast Iron, BS:1452 |
| Washer | Rubber, BS:1154 |
| Dimensional check | Dimensions as per Drawing (See below) |
| Water Tightness Seat Test | 16.5 bar for 2 minutes. |
| Hydrostatic Pressure Test | 22.5 bar for 2 minutes. |
| Performance requirements | Flow test : 510 +/- 30 lpm at 4.7 bar |
| Documentation | Internal inspection report, supplier’s certificates, approved laboratory test certificates |
| Working pressure range | upto 15 bar |
| Weight (approx.) | 5.0 Kgs. |
| Body | Painted - Fire Red Color |
| Wheel | Painted - Black Paint |
| Parts | Polished |
| Marking on Hydrant valve | BHOJEBROS / Size/ Year of Manufacture/ Sl. No |
| Warranty & Guarantee | 12 Months from the date of supply |
Specifications as published by Aaag. Please confirm the exact model with us before ordering.
Single outlet oblique landing valve in gunmetal, made to IS 5290 Type A and ISI approved, with a 75 NB flanged inlet and a 63 mm female instantaneous outlet. A stainless steel body is available as an option.
The stainless steel version of Aaag's oblique landing valve, with the body in stainless steel to IS 3444 Gr. I or Gr. IV and a 63 mm female instantaneous outlet. Aaag's heading lists it as IS 5290 Type A while its table reads Type B, so we confirm the type against your specification.
An oblique landing valve made to BS 5041-1, the British standard for hydrant valves, for projects specified to it. Gunmetal body as standard, stainless steel optional, with a 63 mm female instantaneous outlet.
Sizes: 63 mm
An FM approved oblique landing valve to FM Specification 1521, with a gunmetal (red brass) cast body, tested to 50 bar. The 63 mm female instantaneous outlet follows BS 336 and IS 5290.
Sizes: 63 mm
The stainless steel SS 316 version of Aaag's FM approved oblique landing valve, to FM Specification 1521 and tested to 50 bar, with a 63 mm female instantaneous outlet.
An oblique landing valve with a lock shield, for hydrant systems where unauthorised operation must be prevented, built to a BPCL design. Gunmetal as standard, stainless steel optional.
Single outlet landing valve for hydrant mains and wet risers, made to IS 5290 Type A with the ISI mark and supplied with an ABS blank cap and chain. The heavy duty K-901 and the standard K901-E come in gunmetal or stainless steel.
Double outlet landing valve that feeds two hose lines from one hydrant point, with a 100 mm inlet. Made to IS 5290 Type B with the ISI mark, tested to 21 kg/cm2, in gunmetal or stainless steel.
Sizes: 80 mm
Bronze fire hydrant (landing) valve made to IS 5290 Type A, 80 mm with flanged ends and one outlet fitted with an instantaneous coupling for the hose.
Sizes: 80 mm
SS 304 stainless steel landing valve designed with reference to IS 5290 Type A, 80 mm with flanged ends and a single instantaneous outlet for the fire hose.
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.
Sizes: 2 ½”
ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.
