New Age Oblique Landing Valve, Gunmetal, Flanged, ISI Marked
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.

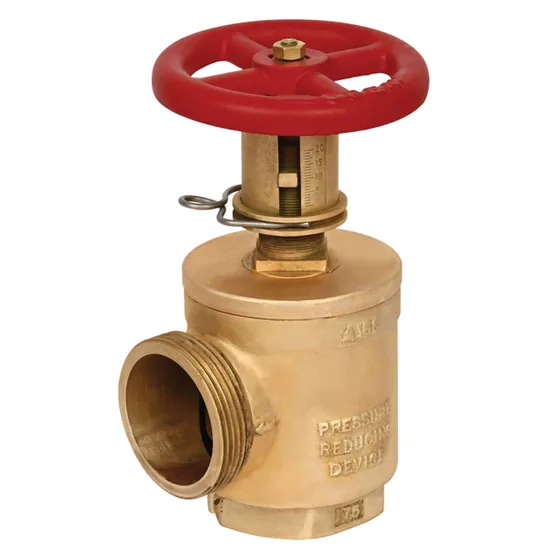

Supplier for New AgeNew Age Pressure Restricting Landing Valve, Gunmetal
Landing valve with a stop built into the stem and bonnet that limits how far it opens, lowering the pressure while water flows. It does not change static pressure; sizes 1.5 inch and 2.5 inch.
- Limits valve opening to restrict flow and cut excess line pressure
- No effect on static (no flow) pressure
- Stop pin can be removed for full opening if supply pressure is low
- Inlet flanged or threaded; outlet threaded, BS instantaneous, Russian GOST or Storz
- Gunmetal construction, suitable for sea water
Specifications
New Age has not published a specification table for this model. Ask us for the data sheet.
Specifications as published by New Age. Please confirm the exact model with us before ordering.
More New Age Landing Valves and Hydrants
New Age Double Headed Hydrant Valve, Gunmetal, ISI Marked
Sizes: 2 ½”
ISI marked gunmetal double headed hydrant valve made to IS 5290, with a 4 inch flanged inlet and 2½ inch female instantaneous outlets.
New Age Oblique Landing Valve, Flanged, FM Approved
Sizes: 2 ½”
FM Approved oblique landing valve for wet riser systems in high pressure fire fighting, 2½ inch with a 3 inch flanged inlet and a 700 psi test pressure.
New Age Oblique Landing Valve, Threaded, FM Approved
Sizes: 2 ½
Threaded inlet version of New Age's FM Approved gunmetal oblique landing valve, 2½ inch with a BSPT male inlet, for wet riser systems.
New Age Bib Nose Landing Valve, Flanged, FM Approved
Sizes: 2 ½”
FM Approved gunmetal bib nose type hydrant valve, 2½ inch with a 3 inch flanged inlet, for marine and on shore use.
New Age Bib Nose Landing Valve, Threaded, FM Approved
Sizes: 2 ½”
FM Approved gunmetal bib nose type hydrant valve with a 2½ inch BSP male threaded inlet, for marine and on shore use.
Landing Valves and Hydrant Valves from other brands
Kartar Valves
Kartar Valves Single Headed Landing Valve, IS 5290 Type A, Gunmetal or SS (K-901, K901-E)
Single outlet landing valve for hydrant mains and wet risers, made to IS 5290 Type A with the ISI mark and supplied with an ABS blank cap and chain. The heavy duty K-901 and the standard K901-E come in gunmetal or stainless steel.
Kartar Valves
Kartar Valves Double Headed Landing Valve, IS 5290 Type B (K901-D)
Double outlet landing valve that feeds two hose lines from one hydrant point, with a 100 mm inlet. Made to IS 5290 Type B with the ISI mark, tested to 21 kg/cm2, in gunmetal or stainless steel.
Zoloto
Zoloto Bronze Landing Valve, Single Outlet, 80 mm, Flanged (1093)
Sizes: 80 mm
Bronze fire hydrant (landing) valve made to IS 5290 Type A, 80 mm with flanged ends and one outlet fitted with an instantaneous coupling for the hose.
Zoloto
Zoloto SS 304 Stainless Steel Landing Valve, Single Outlet, 80 mm, Flanged (1093A)
Sizes: 80 mm
SS 304 stainless steel landing valve designed with reference to IS 5290 Type A, 80 mm with flanged ends and a single instantaneous outlet for the fire hose.
Minimax
Minimax Single Headed Hydrant Valve, Oblique Type A, 63 mm (IS:5290)
Single headed oblique hydrant valve with an 80 mm flat faced flanged inlet and a 63 mm female instantaneous outlet, made to IS:5290-1993 Type A and ISI marked. It is flow tested at 900 LPM at 7 kg/cm2.
Minimax
Minimax Double Headed Hydrant Valve, Oblique Type B, 63 mm (IS:5290)
Double headed oblique hydrant valve with a 100 mm flat faced flanged inlet and 63 mm female instantaneous outlets, made to IS:5290-1993 Type B and ISI marked. It is flow tested at 1800 LPM at 7 kg/cm2.
