New Age Oblique Landing Valve, Gunmetal, Flanged, ISI Marked
Sizes: 2 ½”
ISI marked gunmetal oblique landing valve made to IS 5290 and generally conforming to BS 5041 Part 1, with a 3 inch flanged inlet and a 2½ inch female instantaneous outlet.

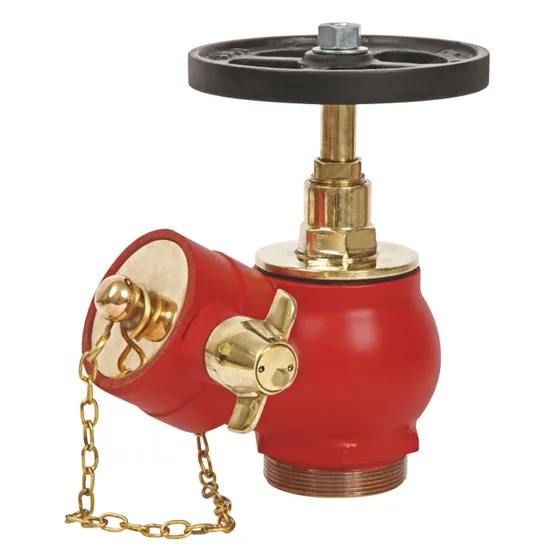

Supplier for New AgeNew Age Oblique Landing Valve, Threaded, FM Approved
Threaded inlet version of New Age's FM Approved gunmetal oblique landing valve, 2½ inch with a BSPT male inlet, for wet riser systems.
- FM Approved
- Gunmetal construction
- 2½ inch BSPT male threaded inlet
- Outlet: 2½ inch female instantaneous, or NH, NST or BSP male thread
- Test pressure 300 psi
Standards and approvals: FM Approved
Sizes: 2 ½
Specifications
Specifications
| Specification | 2 ½ |
|---|---|
| Model No: | NFF-103 |
| Size | 2 ½ |
| Inlet | 2 ½ BSPT(M) Threaded |
| Outlet | 2½” Female Instantaneous / NH (M) / NST(M) / BSP(M) Threaded |
| Test Pressure | 300 PSI |
| Material of Construction | Gunmetal |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
