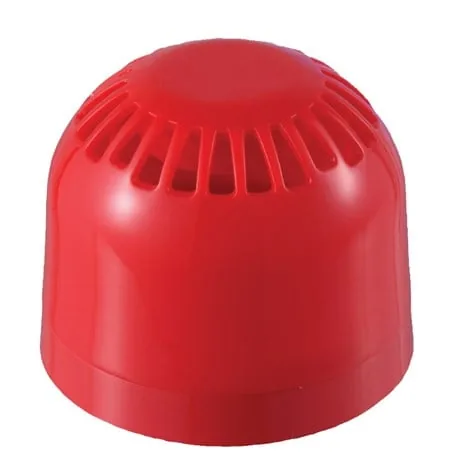

Authorised distributor for ApolloApollo Conventional Open-Area Sounder, Red Body
A conventional sounder that uses the TimeSaver base for faster installation, with a choice of 32 tones and output up to 106 dB(A).
- For conventional systems
- 32 tones, including the major international standards
- Up to 106 dB(A), with volume control of typically 8 dB
- Simple First Fix installation
- 9 to 60 V dc supply, -25 to 70°C
- EN 54-3, 10 year warranty
Standards and approvals: EN 54-3
Specifications
Specifications
| Specification | 29600-322 |
|---|---|
| Warranty | 10 year |
| Maximum sound output tone | 106dB (A) |
| Colour | Red |
| Materials housing | Polycarbonate |
| Product depth | 66mm | 2.6in |
| Product diameter | 100mm | 3.94in |
| Number of cable gland entries | 2 |
| Cable gland entries size | 20mm |
| Supply voltage (min) | 9V dc |
| Supply voltage (max) | 60V dc |
| Supply voltage (Vmin-Vmax) | 9 to 60V dc |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -25°C | -13°F |
| Operating temperature | -25 to 70°C | -13 to 158°F |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
