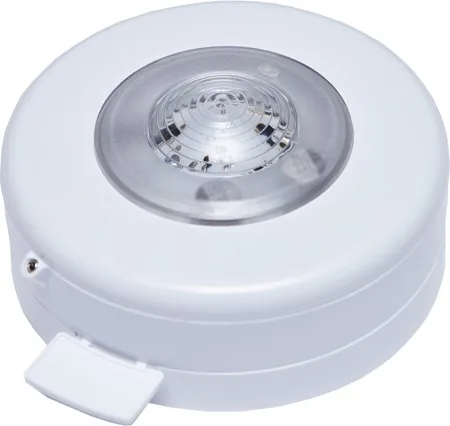

Authorised distributor for ApolloApollo Intelligent Open-Area VID, White Body, White Flash
A visual indicator for open areas with a white body and white flash, working natively across XP95, Discovery and CoreProtocol and mounted on an XPERT base.
- Configurable flash rate
- Group addressing
- Sits on an XPERT base
- 17 to 35 V dc supply, 890 μA quiescent current
- -10 to 55°C, IP21C
- LPCB and CPR approvals
Standards and approvals: LPCB, CPR
Specifications
Specifications
| Specification | SA5501-320APO |
|---|---|
| Colour | White |
| Product depth | 33mm | 1.3in |
| Product diameter | 100mm | 3.94in |
| Quiescent current | 890μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 35V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| IP rating Value | IP21C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
