Apollo Soteria Base Sounder
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.

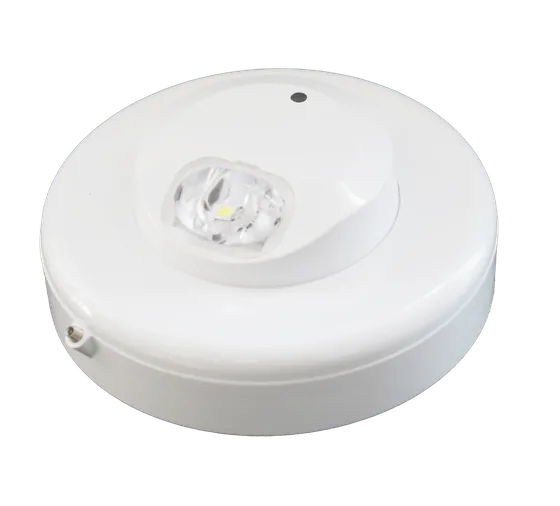

Authorised distributor for ApolloApollo Intelligent Open-Area VAD Cat. W, White Body, White Flash (W-3.1-10)
An EN 54-23 Category W visual alarm device that gives an intense flashing alarm where a sounder would not be enough, such as a noisy workshop or machine room, or where deaf or hearing impaired people may be present.
- EN 54-23 Category W, coverage W-3.1-10
- Configurable coverage volume, high and low settings
- Built-in controllable isolator when used with the XPERT 8 base
- CoreProtocol, Discovery and XP95 communication
- 17 V to 35 V dc supply, -10 to +55°C, IP21C
- White flame-retardant polycarbonate housing, tin-plated stainless steel terminals
Standards and approvals: EN 54-23, EN 54-17
Specifications
Specifications
| Specification | SA5501-500 |
|---|---|
| Supply voltage | 17 V - 35 V dc |
| Digital communication | CoreProtocol, Discovery and XP95 |
| Quiescent current | 1.2 mA |
| Alarm current, LED on High Coverage | 14 mA |
| Alarm current, LED on Low Coverage | 9.5 mA |
| Flash rate | 0.5 Hz |
| Operating temperature | -10 ºC to +55ºC |
| Storage temperature | -10 ºC to +55ºC |
| Humidity | 0% to 95% RH (no condensation or icing) |
| IP Rating | IP21C |
| Dimensions | 100 mm diameter x 40 mm deep |
| Weight | 118 g |
| Materials Housing | White flame-retardant polycarbonate |
| Materials Terminals | Tin-plated stainless steel |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
