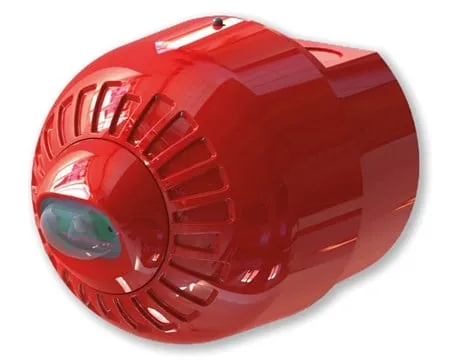

Authorised distributor for ApolloApollo Conventional Open-Area VAD Cat. W, Red Body, White Flash (W-3.1-11.3)
A Sonos Pulse conventional wall mounted visual alarm device certified to EN 54-23, with coverage W-3.1-11.3 in white flash; the red flash variant covers W-2.4-7.5.
- EN 54-23 approved, coverage W-3.1-11.3
- Red or white flash options
- Synchronised flash
- IP65 with deep base
- 17 to 60 V dc supply, -25 to 70°C
- 10 year warranty
Standards and approvals: EN 54-23
Specifications
Specifications
| Specification | 29600-800 |
|---|---|
| Warranty | 10 year |
| Colour | Red |
| Weight | 240g |
| Materials housing | Polycarbonate |
| Product depth | 117mm | 4.61in |
| Product diameter | 97.5mm | 3.84in |
| Number of cable gland entries | 2 |
| Cable gland entries size | 20mm |
| Fixing centres | 4.5mm |
| Supply voltage (max) | 60V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 60V dc |
| Operating temperature | -25 to 70°C | -13 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -25°C | -13°F |
| IP rating Value | IP65 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
