Apollo Soteria Base Sounder
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.

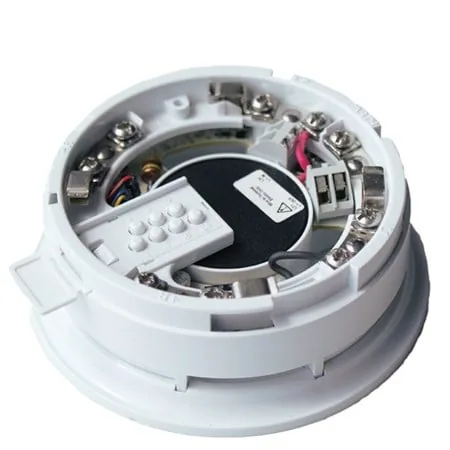

Authorised distributor for ApolloApollo Discovery Sounder Base, Isolating
A Discovery sounder with an integral isolating mounting base, designed for indoor use, that also works on XP95 and CoreProtocol loops.
- 15 pairs of tones, EN 54-3 sounder
- Multiple selectable output volumes
- 4 inch isolated base to EN 54-17
- XPERT 7 addressing
- IP21C, -20 to 60°C, 370 μA quiescent current
- CPR, LPCB and VdS approvals, 10 year warranty
Standards and approvals: EN 54-3, EN 54-17, CPR, LPCB, VdS
Specifications
Specifications
| Specification | 45681-702APO |
|---|---|
| Warranty | 10 year |
| Tone(s) | 15 |
| Colour | White |
| Product length | 38mm | 1.5in |
| Product diameter | 115mm | 4.53in |
| Weight | 140g |
| Terminal functions L2 | +L2, Loop in & out positive |
| Terminal functions L1 in | -L1 in, Loop (isolated) negative |
| Polarity | L1 &, L2 are polarity sensitive |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Protocol voltage | 5 to 9V peak to peak |
| Quiescent current | 370μA |
| Quiescent current tested at | 24V dc |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Operating temperature | -20 to 60°C | -4 to 140°F |
| Operating temperature (max) | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F |
| IP rating Value | IP21C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
