Apollo Soteria Base Sounder
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.

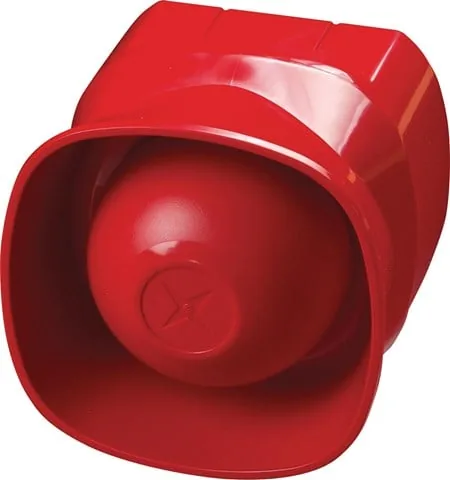

Authorised distributor for ApolloApollo XP95 Open-Area Multi-Tone Sounder, Red Body
A loop powered open-area sounder that connects to any Discovery or XP95 system, with a choice of Apollo, slow whoop and DIN tones.
- Tones: Apollo, slow whoop and DIN
- Two volume settings, 92 dB(A) and 100 dB(A)
- Synchronised tones
- Individual and group addressing
- 18 to 28 V dc supply, -10 to 55°C, IP21C
- FG and CPR approvals, 10 year warranty
Standards and approvals: FG, CPR
Specifications
Specifications
| Specification | 55000-278APO |
|---|---|
| Warranty | 10 year |
| Maximum sound output tone | 100dB (A) |
| Selectable volume(s) | 92dB (A)100dB (A) |
| Colour | Red |
| Product length | 105mm | 4.13in |
| Product width | 105mm | 4.13in |
| Product depth | 90mm | 3.54in |
| Weight | 290g |
| Power-up surge current | 1.2mA |
| Quiescent current | 330μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (min) | 18V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (Vmin-Vmax) | 18 to 28V dc |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| IP rating Value | IP21C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
