Apollo Soteria Base Sounder
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.

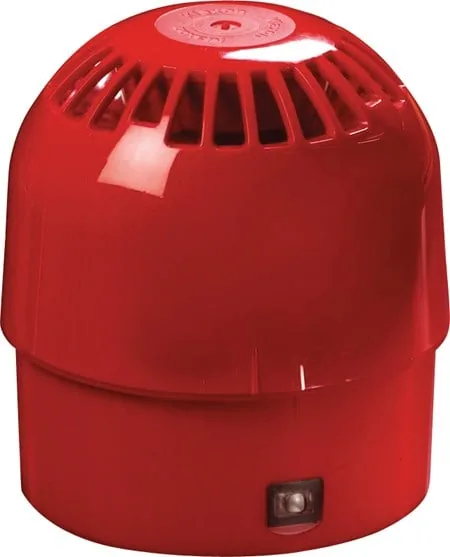

Authorised distributor for ApolloApollo XP95 Open-Area Sounder, Red Body, Isolating
An XP95 open-area sounder with a red body and built-in isolator, with selectable output of 92 or 100 dB(A).
- EN 54-3 sounder
- Selectable volumes of 92 dB(A) and 100 dB(A), 3 tones
- Works on XP95, Discovery and CoreProtocol loops
- 4 inch isolated base to EN 54-17
- 17 to 28 V dc supply, -10 to 55°C
- LPCB, VdS and CPR approvals, 10 year warranty
Standards and approvals: EN 54-3, LPCB, VdS, CPR
Specifications
Specifications
| Specification | 55000-001APO |
|---|---|
| Warranty | 10 year |
| Maximum sound output tone | 100dB (A) |
| Selectable volume(s) | 92dB (A)100dB (A) |
| Tone(s) | 3 |
| Colour | Red |
| Materials housing | Polycarbonate |
| Product depth | 97.5mm | 3.84in |
| Product diameter | 104mm | 4.09in |
| Weight | 225g |
| Polarity | L1 &, L2 are polarity sensitive |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Power-up surge current | 1.2mA |
| Quiescent current | 333μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Storage temperature (min) | -10°C |
| Storage temperature (max) | 55°C |
| Storage temperature | -10 to 55°C |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| IP rating Value | IP65 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
