Apollo Soteria Base Sounder
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.

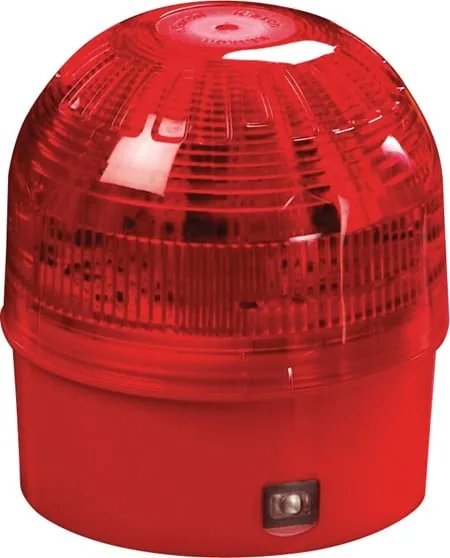

Authorised distributor for ApolloApollo XP95 Open-Area VID, Red Body, Red Flash, Isolating
A loop powered visual indicator for supplementary alarm indication alongside the sounders and VADs that local regulations require. It comes with an isolating base as standard.
- For XP95 and Discovery systems
- Self-test fault monitoring
- Synchronised flashes, individual and group addressing
- Isolating base included as standard
- Red and clear lens options
- IP65, 17 to 28 V dc supply, -10 to 55°C, 10 year warranty
Specifications
Specifications
| Specification | 55000-009APO |
|---|---|
| Warranty | 10 year |
| Colour | Red |
| Materials housing | Polycarbonate |
| Product depth | 97.5mm | 3.84in |
| Product diameter | 104mm | 4.09in |
| Weight | 205g |
| Polarity | L1 &, L2 are polarity sensitive |
| Power-up surge current | 1.2mA |
| Quiescent current | 333μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| IP rating Value | IP65 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
