Apollo Soteria Base Sounder
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.

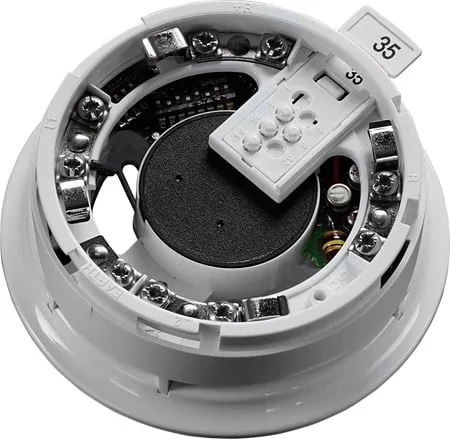

Authorised distributor for ApolloApollo XP95 Sounder Base
The non-isolating XP95 sounder base: a base sounder with integral mounting base for Discovery or XP95 systems, designed for indoor use.
- Two tones
- Two volume ranges, 55 to 75 dB(A) and 75 to 91 dB(A)
- Individual and group addressing
- Acoustic self-test
- 17 to 28 V dc supply, -20 to 60°C, IP21D
- CPR approval, 10 year warranty
Standards and approvals: CPR
Specifications
Specifications
| Specification | 45681-278APO |
|---|---|
| Warranty | 10 year |
| Polarity | L1 &, L2 are polarity sensitive |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Protocol voltage | 5 to 9V peak to peak |
| Power-up surge current | 1.2mA |
| Quiescent current | 200μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Materials housing | Polycarbonate |
| Product length | 38mm | 1.5in |
| Product diameter | 115mm | 4.53in |
| Weight | 140g |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Operating temperature | -20 to 60°C | -4 to 140°F |
| Operating temperature (max) | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F |
| IP rating Value | IP21D |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
