Apollo Soteria Base Sounder
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.

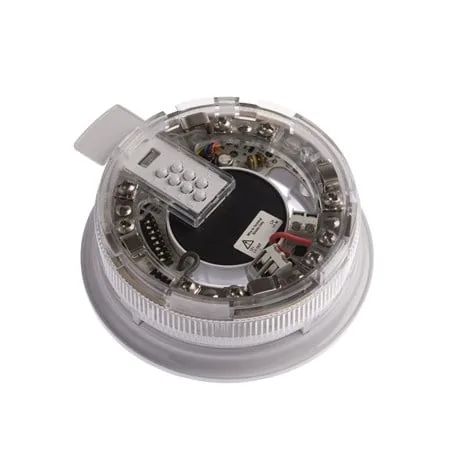

Authorised distributor for ApolloApollo XP95 Sounder VAD Base Cat. O (White Flash), Isolating
An XP95 sounder base with an EN 54-23 Category O white flash VAD beacon and an integral isolating mounting base, designed for indoor use.
- Two-tone EN 54-3 sounder with multiple selectable volumes
- EN 54-23 Category O VAD beacon, white flash
- 4 inch isolated base to EN 54-17
- Works on XP95, Discovery and CoreProtocol loops
- 17 to 28 V dc supply, 350 μA quiescent current
- CPR, FG and LPCB approvals, 10 year warranty
Standards and approvals: CPR, FG, LPCB
Specifications
Specifications
| Specification | 45681-705APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Weight | 168g |
| Materials housing | Polycarbonate |
| Product length | 38mm | 1.5in |
| Product diameter | 115mm | 4.53in |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Maximum power-up time | 1 second |
| Quiescent current | 350μA |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Loop powered | Yes |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
