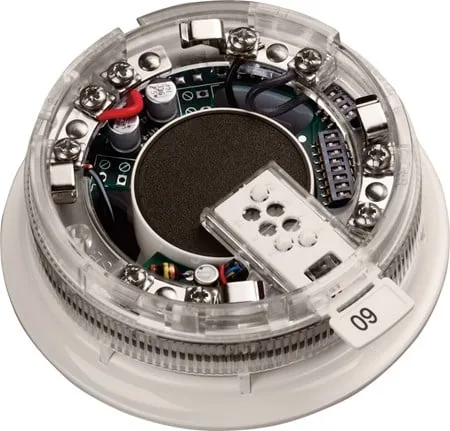

Authorised distributor for ApolloApollo XP95 Sounder VID Base (Red Flash), Isolating
An XP95 two-tone sounder base with a red flashing visual indicator beacon and an integral isolating mounting base, designed for indoor use.
- Two-tone EN 54-3 sounder, up to 91 dB(A)
- Selectable volumes of 55 to 75 dB(A) and 75 to 91 dB(A)
- Red flash visual indicator beacon, 1 Hz
- 4 inch isolated base to EN 54-17
- Works on XP95, Discovery and CoreProtocol loops
- FG and CPR approvals, 10 year warranty
Standards and approvals: EN 54-3, EN 54-17, FG, CPR
Specifications
Specifications
| Specification | 45681-330APO |
|---|---|
| Warranty | 10 year |
| Flash rate | 1Hz |
| Maximum sound output tone | 91dB (A) |
| Selectable volume(s) | 55-75dB (A)75-91dB (A) |
| Tone(s) | 2 |
| Colour | White |
| Finish | Semi-gloss |
| Weight | 0.35lbs | 160g |
| Materials housing | Polycarbonate |
| Product depth | 38mm | 1.5in |
| Product diameter | 115mm | 4.53in |
| Terminal functions L2 | +L2 Loop in & out positive, double terminal |
| Terminal functions L1 in | -L1 in Loop in & out, double terminal |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity sensitive |
| Battery powered | No |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1.2mA |
| Quiescent current | 300μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Loop powered | Yes |
| Storage temperature (min) | -20°C |
| Storage temperature (max) | 60°C |
| Storage temperature | -20 to 60°C |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Operating temperature (max) | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F |
| Operating temperature | -20 to 60°C | -4 to 140°F |
| IP rating Value | IP21C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
