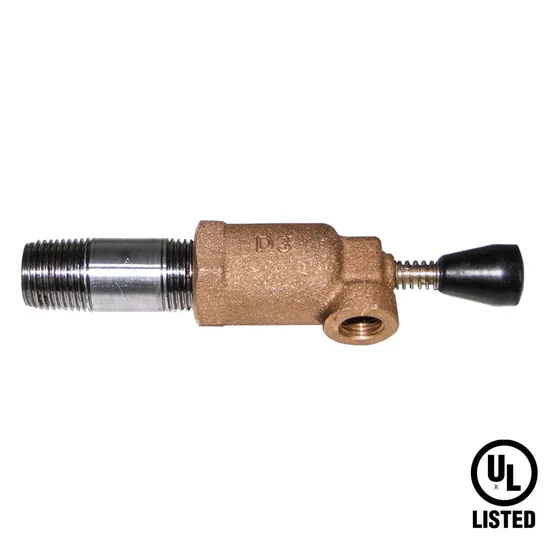

Dealer for HD FireHD Fire Automatic Ball Drip Valve, Bronze
A bronze automatic ball drip valve that forms part of HD's UL Listed deluge valve trim. It is used with the ETW-D, NTW, ETD-D and NTD trims on all HD deluge valve models.
- Bronze construction
- Part of UL Listed deluge valve trim
- Fits ETW-D, NTW, ETD-D and NTD trims on all HD deluge valves
Standards and approvals: UL Listed
Specifications
Specifications
| Specification | Details | D3 |
|---|---|---|
| MODEL | D3 | |
| HOUSING | Bronze IS:318-L TB-II | |
| BALL | Stainless Steel | |
| APPROVAL | Part of HD’s UL Listed Deluge Valve | |
| MAXIMUM WORKING PRESSURE | 17.5 bar (250 psi) |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
