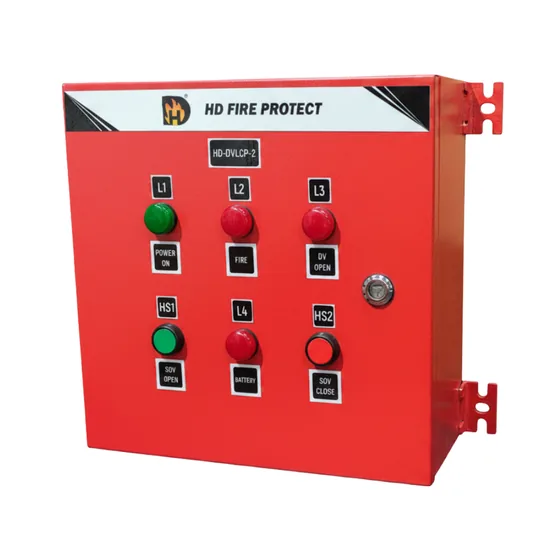

Dealer for HD FireHD Fire Deluge Valve Local Control Panel (DVLCP), IP65
A local panel that operates the deluge valve either automatically, from a fire alarm input or a fire device with a potential free output, or manually through its push buttons.
- Automatic operation from a fire alarm input
- Manual operation by push buttons on the panel
- IP65 enclosure, meaning dust tight and protected against water jets
- Charging voltage 30 VDC
- Relay rating 5 A at 230 VAC
Specifications
Specifications
| Specification | HD-DVLCP-1 HD-DVLCP-2 |
|---|---|
| MODEL | HD-DVLCP-1 HD-DVLCP-2 |
| DIMENSION | 350(H) x 350(W) x 200(D) mm |
| CONSTRUCTION | 1.6mm (±10%), CRCA mild steel sheet with powder-coated finish |
| FINISH | Red RAL 3001 standard supply |
| IP RATING | IP65 |
| MOUNTING | with wall mounted bracket |
| INPUT SUPPLY | Selectable by Toggle Switch 120VAC or 220~240VAC ±10%, 50Hz,1A (Max.) |
| INPUT FUSE | 1A |
| BATTERY FUSE | 5A |
| OUTPUT FUSE | 1A |
| CHARGING VOLTAGE | 30VDC, ±0.2V |
| CHARGING CURRENT | 1A (Max.) |
| DC OUTPUT POWER | 24VDC ±5%, 1A (For SOV operation) |
| RELAY OUTPUTS | Two SPST normally-open relay outputs (One for ‘FIRE’ and One for ‘DV OPEN’) |
| RATING | 5A @230VAC |
| INPUT | Potential-free dry contact input (for SOV operation from External command) |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
