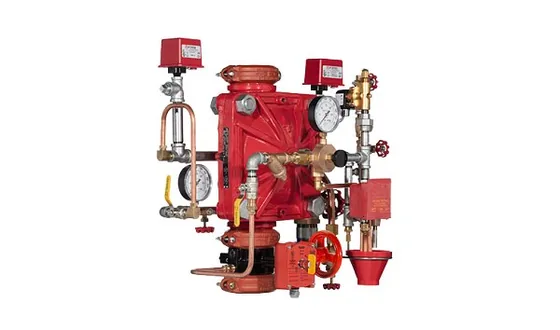

Supplier for TycoA DV-5A diaphragm valve for double interlock preaction systems, held shut by a solenoid valve that opens only when both zones of the releasing panel have operated.
Standards and approvals: UL/C-UL Listed, FM Approved
Sizes: DN40 thru DN200
| Specification | DN40 thru DN200 |
|---|---|
| Valve Trim | The maximum pressure rating for the Electric/Electric Double Interlock Preaction Trim is dependent on separately ordered solenoid valve per Technical Data Sheet TFP2180. |
| Pressure Loss | See Graph A |
| Valve Body | Epoxy coated ductile iron per ASTM A536-77, Grade 65-45-12 |
| Diaphragm Cover | Epoxy coated ductile iron per ASTM A536-77, Grade 65-45-12 |
| Diaphragm | Polyester fabric reinforced, TEFLON coated, EPDM rubber per ASTM D2000 |
| Diaphragm Cover Fasteners | Aluminum zinc coated steel Note: For wrench and socket sizes, see Table B. |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
