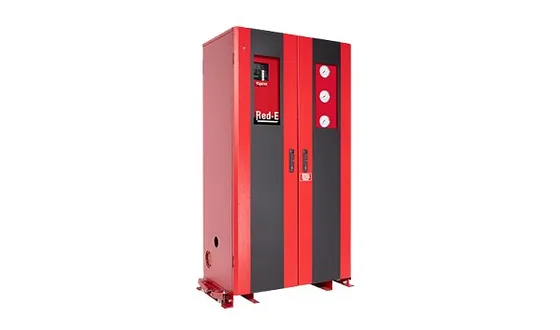

Supplier for TycoA pre-assembled, pre-wired deluge valve riser in a free-standing cabinet, with the shut-off control valve, DV-5A automatic water control valve, waterflow and supervisory switches, and a control panel with back-up batteries.
Standards and approvals: UL and C-UL Listed
Sizes: DN40 to DN200
| Specification | DN40 to DN200 |
|---|---|
| Working Pressure Range | DV-5a Valve: 20 to 300 psi (1,4 to 20,7 bar) |
| Valve Trim | Refer to individual trim technical data sheets for rated trim pressures as shown in Table A |
| Construction | The Red-E Cabinet is constructed of a minimum thickness of 14 gauge steel, and is free standing. The standard paint finish is bright red and black. The front doors of the enclosure are fully hinged and removable and open nearly to the cabinet floor level, allowing easy access to the couplings when connecting the water supply and drain. |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
A pre-assembled DV-5A valve package in a free-standing cabinet for indoor or outdoor use, with shut-off and downstream valves, galvanized trim and supervisory switches pre-wired to a junction box.
Sizes: DN40 to DN200
A diaphragm type automatic water control valve for deluge systems released by a water filled pilot line, with a double seat design that also actuates fire alarms when trimmed.
Sizes: DN40 to DN200
A diaphragm type automatic water control valve for deluge systems released by a pressurised dry pilot line, with a double seat design that also actuates fire alarms when trimmed.
Sizes: DN40 to DN200
A diaphragm type automatic water control valve for deluge systems released by an electric detection system, with a double seat design that also actuates fire alarms when trimmed.
Sizes: DN40 to DN200
A DV-5A diaphragm valve with remote-resetting trim, which can be opened and closed during full flow from a remote location and reset from one or more places.
Sizes: DN80 to DN200
A DV-5A diaphragm valve with remote-resetting, pressure-reducing trim, which holds a preset outlet pressure and can be opened and closed during full flow from a remote location.
A bronze automatic ball drip valve that forms part of HD's UL Listed deluge valve trim. It is used with the ETW-D, NTW, ETD-D and NTD trims on all HD deluge valve models.
A field adjustable device that regulates and restricts air flow to hold the air pressure in the pneumatic lines of a pre-action system or a dry pilot actuated deluge valve.
Sizes: 4”, 6”
UL Listed alarm check valve for the head of a wet sprinkler system, in 4 inch and 6 inch sizes with ANSI B16.5 flanged inlet and outlet.
A supervisory switch that monitors the open position of post indicator and butterfly control valves, with a bi-directional actuator for rising or falling flag installations.
A supervisory switch that monitors the open position of outside screw and yoke (OS&Y) gate valves, for indoor and outdoor use.
