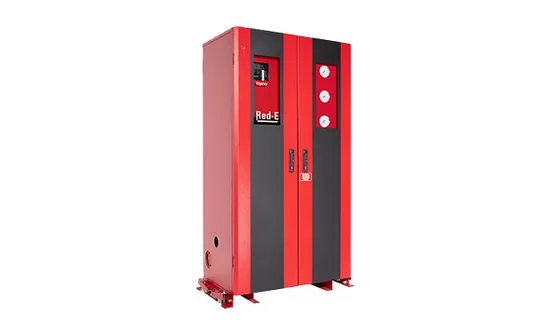

Supplier for TycoA pre-assembled, pre-wired preaction valve riser in a free-standing cabinet, with shut-off control valve, DV-5A valve, waterflow and supervisory switches, a built-in air compressor and a control panel with back-up batteries.
Standards and approvals: UL and C-UL Listed, FM Approved, CSFM Listed
Sizes: DN40 to DN200
| Specification | DN40 to DN200 |
|---|---|
| Working Pressure Range | DV-5A Valve: 20 to 300 psi (1,4 to 20,7 bar) |
| Construction | The Red-E Cabinet is constructed of a minimum thickness of 14 gauge steel and is free standing. The standard paint finish is bright red and black. The front doors of the enclosure are fully hinged (and removable) and open nearly to the cabinet floor level allowing easy access to the couplings when connecting the water supply and drain. Pre-drilled holes on tabs along the base of the cabinet provide an anchor point for the cabinet to be secured to the floor when required. Industrial grade rollers at the bottom of the cabinet are standard. Internal controls that provide functions to reset a system after operation - for example, the alarm test valve or main drain valve - are individually tagged for easy identification. All prefabricated piping is Schedule 40 steel. |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
