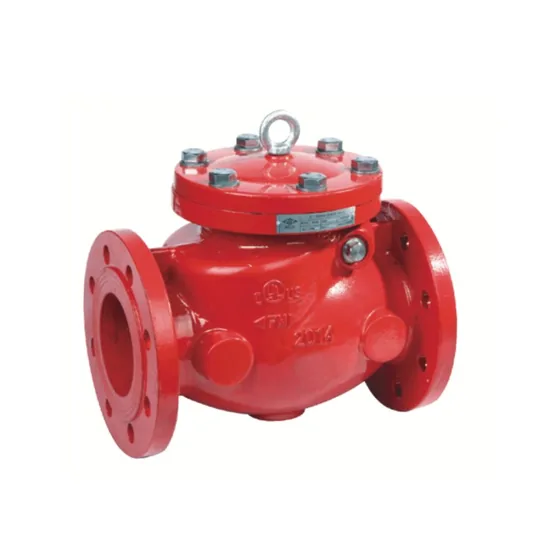

Authorised distributor for Sant ValvesFlanged swing check valve with a resilient seat, for non return duty on fire pump and hydrant lines. UL Listed, FM Approved and LPCB Approved (EX 29404), PN16, 50 mm to 300 mm.
Standards and approvals: UL Listed / FM Approved / LPCB Approved (EX 29404), UL/FM Approved
Sizes: 50 mm to 300 mm
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|
| Inch | 2″ | 2.5″ | 3″ | 4″ | 6″ | 8″ | 10″ | 12″ |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 |
| L | 203 | 216 | 241 | 292 | 356 | 495 | 622 | 698 |
| D | 165 | 185 | 200 | 220 | 285 | 340 | 405 | 460 |
| D1 | 125 | 145 | 160 | 180 | 240 | 295 | 355 | 410 |
| d | 99 | 118 | 132 | 156 | 211 | 266 | 319 | 370 |
| b | 19 | 19 | 19 | 19 | 19 | 20 | 22 | 24.5 |
| E | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 |
| H | 133 | 150 | 150 | 218 | 290 | 330 | 350 | 376 |
| n-∅d | 4-∅19 | 4-∅19 | 8-∅19 | 8-∅19 | 8-∅23 | 12-∅23 | 12-∅28 | 12-∅28 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
